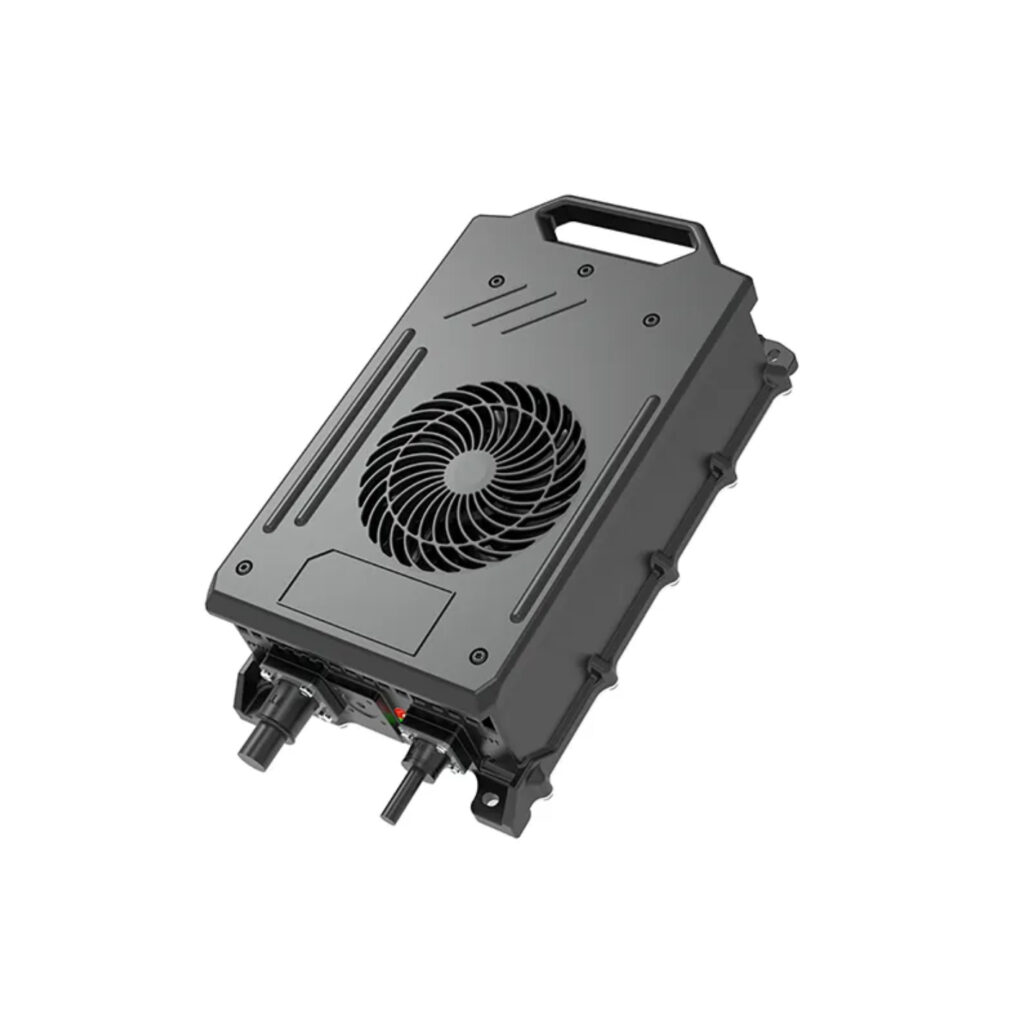

Solterra STTL3000BG8435L — 2950 W 84 V Certified Portable Charger
Certified, Rugged, Compliant.
Technical Specifications
3-Year from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 2950 W |
| Nominal Battery Voltage | 84 Vdc |
| Output Voltage Range (CP operation) | 66 Vdc – 103 Vdc |
| Max Output Current | 35 A |
| Lowest Output Voltage | 16 Vdc |
| Max Output Power | 2950W (maximum output power of this series) @ 230Vac; 1200W @ 120Vac (5-15P plug); 1500W @ 120Vac (5-20P plug or distribution); Adaptive grid. |
| Output Ripple | <200mV |
| Efficiency | 90% @230VAC |
| AC Input Voltage | 120VAC/230VAC-240VAC |
| Input Voltage Range | 85VAC - 270VAC |
| Max Input Current | ≤15A@240Vac; ≤12A@120Vac (5-15P plug); ≤15A@120Vac (5-20P plug or distribution) Adaptive grid |
| Power Factor | 0.99@220VAC, full load |
| Input Frequency | 50/60 Hz |
| Input Phase | Single-phase three-wire system |
| Output Waveform | Sine |
| Ingress Protection | IP65 (charger housing) |
| Cooling | Forced air cooling |
| Altitude | 2000m |
| Operating Temperature | -25℃ - 65℃ |
| Storage Temperature | -40℃ - 95℃ |
| Input Wire Size | ≥2.5 mm² (13 AWG) |
| Output Wire Size | ≥7 mm² (≤9 AWG) |
| Auxiliary Power Output | 12V/3A or 12V/5A |
| Weight | 9.5 kg |
| Dimensions (L×W×H) | 336⤫203⤫97 |
| Mounting | Portable and Onboard |
| Certification Class | North America and Europe Series |
| Certification Details | UL / CB / CE / FCC / KC / KCC / RCM / CEC / DOE / CP65 / ECE R10 |
| Hipot (input–output) | Basic insulation: 2000VAC <10mA 60s |
| Hipot (input–case) | Basic insulation: 2000VAC <10mA 60s |
| Hipot (output–case) | Basic insulation: 1000VAC <10mA 60s |
| Surge Immunity | LN: 4kV (1min interval) |
| EMC | Available |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 120VAC/230VAC-240VAC, Single-phase three-wire system |
| DC Output | 84 V Li, 66V - 103V CP, 35 A |
| CAN | Optional |
| RS485 | Unavailable |
| Auxiliary Power | 12V/3A or 12V/5A |
| Programming | CANbus external programming interface |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input under/over-voltage | When the AC input voltage is lower than 150Vac, the charger stops working and an under-voltage alarm occurs; when the AC input voltage is higher than 280Vac, the charger stops working and an over-voltage alarm occurs; |
| Input overcurrent | The charger reduces the output power to ensure that the input over current (active monitoring) thresholds are not breached. |
| Output over-voltage | If output voltage exceeds the internal OV threshold, the charger immediately cuts the output relay and gives an alarm. |
| Output overcurrent | If load current exceeds the internal OC limit, the charger immediately cuts the output relay and gives an alarm. |
| Output short circuit | If the output is short-circuited, the charger shuts down output with current limit and an alarm is issued. |
| Reverse polarity & no-load | If the battery is connected in reverse, the charger shuts down output and alarms (reverse polarity protection not active during Activation mode). If battery voltage is missing or <⅓ of rated pack voltage, the charger alarms and gives no output. |
| Automatic shutdown | If charging time or charging end voltage exceeds the internal maximum limit, it stops charging and alarms. |
| Over-temperature | If internal or ambient temperature goes above the set value, it first reduces current (derating), then stops and alarms; charging resumes automatically when temperature falls to the recovery point. With an external probe, it can also monitor battery/ambient temperature. |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air cooling |
| Mounting | Portable and Onboard (dual-mount) |
| Certification | North America and Europe Series — UL / CB / CE / FCC / KC / KCC / RCM / CEC / DOE / CP65 / ECE R10 |
| Auxiliary output | 12V/3A or 12V/5A |
Additional Details
The STTL3000BG8435L is a 2950 W certified portable charger for 84 V lithium packs, part of Solterra’s BG certified series for North America and Europe. It accepts a wide single-phase three-wire input (120 V and 230–240 Vac; 85–270 Vac range) with an adaptive-grid strategy — 2950 W at 230 Vac, 1200 W at 120 Vac on a 5-15P plug and 1500 W at 120 Vac on a 5-20P plug or distribution — and delivers a constant-power output of 66–103 Vdc at up to 35 A with 90% efficiency, PF 0.99 and a pure sine waveform.
It is internationally certified — UL, CB, CE, FCC, KC, KCC, RCM, CEC, DOE, CP65 and ECE R10 — IP65-sealed, forced-air cooled, and protected against input/output over- and under-voltage, overcurrent, short-circuit, reverse polarity, over-temperature (with derating) and over-time charging. A 12 V/3 A or 12 V/5 A auxiliary output, optional CAN and a CANbus programming interface support integration; the unit mounts both as a portable charger and onboard.
Frequently asked questions
What is the Solterra STTL3000BG8435L — 2950 W 84 V Certified Portable Charger?
The STTL3000BG8435L is a 2950 W, 84 V certified portable EV charger — certified for North America and Europe (UL/CB/CE/FCC/KC/KCC/RCM/CEC/DOE/CP65/ECE R10), IP65-sealed with pure sine output and wide 120/230–240 Vac adaptive-grid input, for portable and onboard charging of 84 V lithium battery packs.
What are the key specifications of the STTL3000BG8435L?
Output — 84 Vdc · 35 A · 2950 W · 90% · IP65 · sine. Input — 120VAC/230VAC-240VAC (range 85VAC - 270VAC), 50/60 Hz, ≤15A@240Vac; ≤12A@120Vac (5-15P plug); ≤15A@120Vac (5-20P plug or distribution) Adaptive grid, PF 0.99@220VAC, full load.
What are the STTL3000BG8435L's efficiency, ingress protection and operating conditions?
Peak efficiency: 90% @230VAC. Operating temperature: -25℃ - 65℃. Cooling: Forced air cooling.
What communication interfaces does the STTL3000BG8435L support?
CAN (optional); RS485 unavailable; CANbus external programming interface; aux 12 V/3 A or 12 V/5 A.
What protection features does the STTL3000BG8435L include?
Built-in protections: Input under/over-voltage, Input overcurrent, Output over-voltage, Output overcurrent, Output short circuit, Reverse polarity & no-load, Automatic shutdown, Over-temperature.
What is the warranty on the STTL3000BG8435L?
3-Year from date of invoice.
