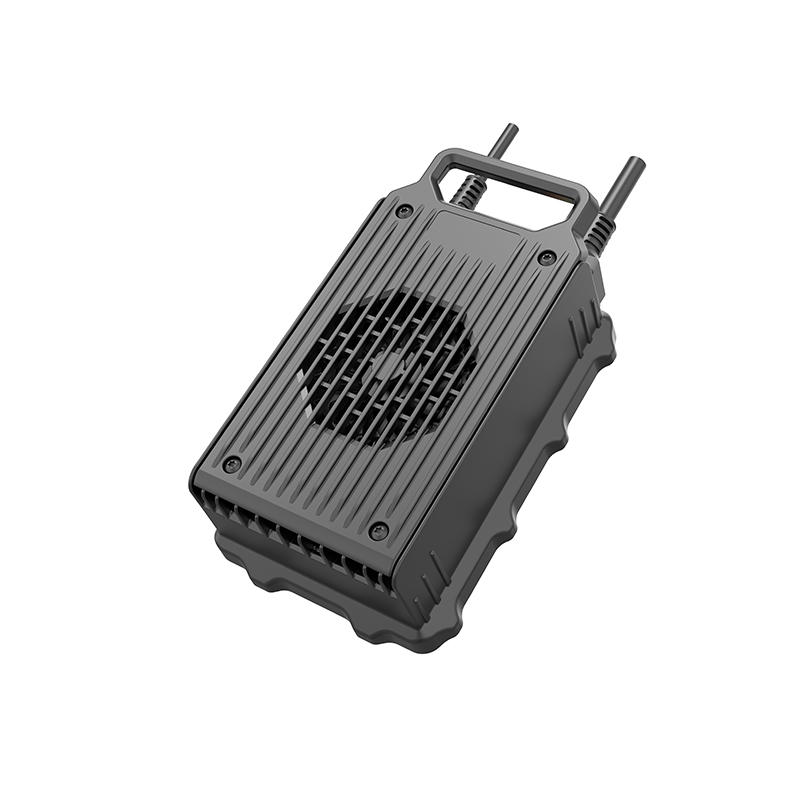

Solterra STTL600CG4812L — 600 W 48 V Certified Portable Charger
Certified, Rugged, Compliant.
Technical Specifications
3-Year from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 600 W |
| Nominal Battery Voltage | 48 Vdc |
| Output Voltage Range (CP operation) | 39 Vdc – 60 Vdc |
| Max Output Current | 12 A |
| Lowest Output Voltage | 16 Vdc |
| Max Output Power | 600W (maximum output power of this series) |
| Output Ripple | <200mV |
| Efficiency | ≥90% @220VAC |
| AC Input Voltage | 120VAC/220-240VAC |
| Input Voltage Range | 85VAC - 270VAC |
| Max Input Current | ≤6A |
| Power Factor | 0.99@220VAC, full load |
| Input Frequency | 50/60 Hz |
| Input Phase | Single-phase three-wire system |
| Output Waveform | Sine |
| Ingress Protection | IP65 (charger housing) |
| Cooling | Forced air cooling |
| Altitude | 2000m |
| Operating Temperature | -25℃ - 65℃ |
| Storage Temperature | -40℃ - 95℃ |
| Input Wire Size | ≥1 mm² (18 AWG) |
| Output Wire Size | ≥2 mm² (≤14 AWG) |
| Auxiliary Power Output | 12V/0.2A |
| Weight | 2.1 kg |
| Dimensions (L×W×H) | 202⤫135⤫72 |
| Mounting | Portable and Onboard |
| Certification Class | North America Series |
| Certification Details | UL / CB / CE / FCC / KC / KCC / RCM / CEC / DOE / CP65 / ECE R10 |
| Hipot (input–output) | Basic insulation: 2000VAC <10mA 60s |
| Hipot (input–case) | Basic insulation: 2000VAC <10mA 60s |
| Hipot (output–case) | Basic insulation: 1000VAC <10mA 60s |
| Surge Immunity | LN: 4kV (1min interval) |
| EMC | Available |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 120VAC/220-240VAC, Single-phase three-wire system |
| DC Output | 48 V Li, 39V - 60V CP, 12 A |
| CAN | Optional |
| RS485 | Optional |
| Auxiliary Power | 12V/0.2A |
| Signals | Charging-lock, CHG, SW (available) |
| Programming | CANbus external programming interface |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input under/over-voltage | When the AC input voltage is lower than 150Vac, the charger stops working and an under-voltage alarm occurs; when the AC input voltage is higher than 280Vac, the charger stops working and an over-voltage alarm occurs; |
| Input overcurrent | The charger reduces the output power to ensure that the input over current (active monitoring) thresholds are not breached. |
| Output over-voltage | If output voltage exceeds the internal OV threshold, the charger immediately cuts the output relay and gives an alarm. |
| Output overcurrent | If load current exceeds the internal OC limit, the charger immediately cuts the output relay and gives an alarm. |
| Output short circuit | If the output is short-circuited, the charger shuts down output with current limit and an alarm is issued. |
| Reverse polarity & no-load | If the battery is connected in reverse, the charger shuts down output and alarms (reverse polarity protection not active during Activation mode). If battery voltage is missing or <⅓ of rated pack voltage, the charger alarms and gives no output. |
| Automatic shutdown | If charging time or charging end voltage exceeds the internal maximum limit, it stops charging and alarms. |
| Over-temperature | If internal or ambient temperature goes above the set value, it first reduces current (derating), then stops and alarms; charging resumes automatically when temperature falls to the recovery point. With an external probe, it can also monitor battery/ambient temperature. |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air cooling |
| Mounting | Portable and Onboard (dual-mount) |
| Certification | North America Series — UL / CB / CE / FCC / KC / KCC / RCM / CEC / DOE / CP65 / ECE R10 |
| Auxiliary output | 12V/0.2A |
Additional Details
The STTL600CG4812L is a 600 W certified portable charger for 48 V lithium packs, part of Solterra’s CG (North America) certified series. It accepts a wide single-phase three-wire input (120 V and 220–240 Vac; 85–270 Vac range) at 50/60 Hz and delivers a constant-power output of 39–60 Vdc at up to 12 A with ≥90% efficiency, PF 0.99, < 200 mV ripple and a pure sine waveform.
It is comprehensively certified for North America — UL, CB, CE, FCC, KC, KCC, RCM, CEC, DOE, CP65 and ECE R10 — IP65-sealed, forced-air cooled, and protected against input/output over- and under-voltage, overcurrent, short-circuit, reverse polarity, over-temperature (with derating) and over-time charging. A 12 V/0.2 A auxiliary output, charging-lock/CHG/SW signals, optional CAN and RS485, and a CANbus programming interface support integration; the unit mounts both as a portable charger and onboard.
Frequently asked questions
What is the Solterra STTL600CG4812L — 600 W 48 V Certified Portable Charger?
The STTL600CG4812L is a 600 W, 48 V certified portable EV charger — North America certified (UL/CB/CE/FCC/KC/KCC/RCM/CEC/DOE/CP65/ECE R10), IP65-sealed with pure sine output and wide 120/220–240 Vac input, for portable and onboard charging of 48 V lithium battery packs.
What are the key specifications of the STTL600CG4812L?
Output — 48 Vdc · 12 A · 600 W · ≥90% · IP65 · sine. Input — 120VAC/220-240VAC (range 85VAC - 270VAC), 50/60 Hz, ≤6A, PF 0.99@220VAC, full load.
What are the STTL600CG4812L's efficiency, ingress protection and operating conditions?
Peak efficiency: ≥90% @220VAC. Operating temperature: -25℃ - 65℃. Cooling: Forced air cooling.
What communication interfaces does the STTL600CG4812L support?
CAN & RS485 (optional); charging-lock / CHG / SW signals; CANbus programming interface; aux 12 V/0.2 A output.
What protection features does the STTL600CG4812L include?
Built-in protections: Input under/over-voltage, Input overcurrent, Output over-voltage, Output overcurrent, Output short circuit, Reverse polarity & no-load, Automatic shutdown, Over-temperature.
What is the warranty on the STTL600CG4812L?
3-Year from date of invoice.
