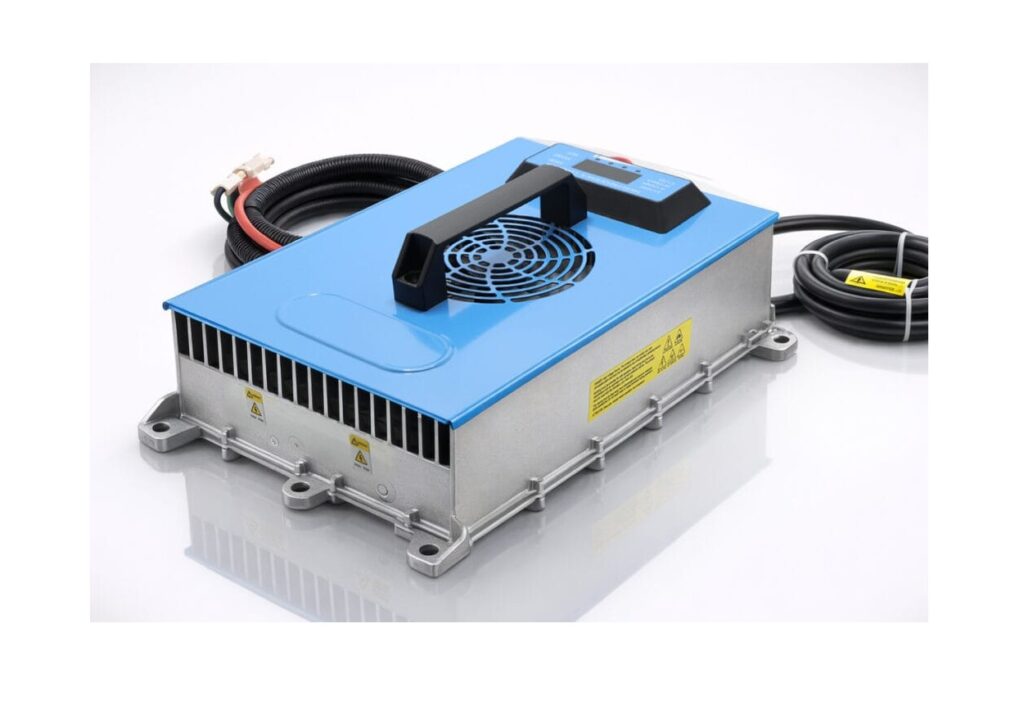

STTL6060PH — 4.5 kW 60 V Forklift Charger (PH Series)
Rugged, Portable, Fast-Charging.
Technical Specifications
3-Year from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Nominal Battery Voltage | 60 V |
| Rated Output Power | 4500 W |
| Max Output Power | 4500 W |
| Output Voltage Range | 60V - 86V |
| Lowest Output Voltage | 35 V |
| Max Output Current | 60 A |
| Efficiency | ≥90% |
| Ripple | ≤200 mV |
| Cooling | Forced air cooling |
| IP Rating | IP65 (charger housing) |
| Operating Temperature | -35℃ - 65℃ |
| Storage Temperature | -40℃ - 95℃ |
| Altitude | 2000 m |
| Input Phases | 3-Phase, Three-phase three-wire + PE |
| Waveform | sine |
| Rated Input Voltage | Phase voltage: 200Vac-240Vac, line voltage: 346Vac-412Vac |
| Input Voltage Range | Phase voltage: 150Vac-264Vac, line voltage: 260Vac-457Vac |
| Max Input Current | 9 A |
| Power Factor | ≥0.99@Full Load |
| Input Frequency | 50/60 Hz |
| Input Wire Size | ≥1.5 mm² |
| Output Wire Size | ≥16 mm² |
| Hipot Input-Output | Basic insulation: 2000VAC <10mA 60s |
| Hipot Input-Case | Basic insulation: 2000VAC <10mA 60s |
| Hipot Output-Case | Basic insulation: 1000VAC <10mA 60s |
| Surge Immunity | LN: 4kV (1min interval) |
| Weight | 10.3 kg |
| Dimensions (L×W×H) | 419⤫281.5⤫100.5mm |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | Phase voltage: 200Vac-240Vac, line voltage: 346Vac-412Vac (Phase voltage: 150Vac-264Vac, line voltage: 260Vac-457Vac) |
| DC Output | 60V - 86V, up to 60 A |
| CAN | Yes |
| Aux Power | Optional 12V/2A |
| LCD Display | Yes / Optional |
| External Indicator | Yes, Customizable |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input Under/Over Voltage | When the AC input voltage is lower than 150Vac, the charger stops working and an under-voltage alarm occurs; when the AC input voltage is higher than 280Vac, the charger stops working and an over-voltage alarm occurs; |
| Input Overcurrent | The charger reduces the output power to ensure that the input over current (active monitoring) thresholds are not breached. |
| Output Over-Voltage | If output voltage exceeds the internal OV threshold, the charger immediately cuts the output relay and gives an alarm. |
| Output Overcurrent | If load current exceeds the internal OC limit, the charger immediately cuts the output relay and gives an alarm. |
| Output Short Circuit | If the output is short-circuited, the charger shuts down output with current limit and an alarm is issued. |
| Reverse Polarity & No-Load | If the battery is connected in reverse, the charger shuts down output and alarms (reverse polarity protection not active during Activation mode). If battery voltage is missing or <⅓ of rated pack voltage, the charger alarms and gives no output. |
| Automatic Shutdown | If charging time or charging end voltage exceeds the internal maximum limit, it stops charging and alarms. |
| Over-Temperature | If internal or ambient temperature goes above the set value, it first reduces current (derating), then stops and alarms; charging resumes automatically when temperature falls to the recovery point. With an external probe, it can also monitor battery/ambient temperature. |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air cooling |
| Bluetooth | Yes |
| Charging Lock | Optional |
| HV Interlock | Optional |
| 380VAC Protection | Available |
| Built-in Indicator | Available |
Additional Details
This charger is a compact, high-efficiency solution with integrated protections. It offers multiple communication options for seamless system integration and is designed for long-term reliability, thermal robustness and easy installation, making it ideal for both OEM and retrofit deployments. The safety- and reliability-focused architecture delivers proven durability in harsh automotive and industrial conditions, with active PFC and digital LLC control for well regulated charging. Reliable hardware with integrated prognostics and health monitoring is fully potted in soft silicone inside a rugged sealed aluminium die-cast enclosure that resists vibration, shock, dirt, chemicals and fluids. It supports both on-board and off-board installation with an optional carry handle, and uses advanced charging algorithms to ensure safety throughout the charge process.
Frequently asked questions
What is the STTL6060PH — 4.5 kW 60 V Forklift Charger (PH Series)?
4.5 kW high-power 3-phase 60 V forklift lithium charger (60V - 86V, up to 60 A) — IP65 die-cast enclosure, CAN + Bluetooth, ≥90% efficiency, with active PFC and digital LLC control.
What are the key specifications of the STTL6060PH?
Output — 60V - 86V · 60 A · 4500 W · ≥90%. Input — 3φ Phase voltage: 200Vac-240Vac, line voltage: 346Vac-412Vac (Phase voltage: 150Vac-264Vac, line voltage: 260Vac-457Vac), ≤9 A, 50/60 Hz, PF ≥0.99@Full Load.
What are the STTL6060PH's efficiency, ingress protection and operating conditions?
Peak efficiency: ≥90%. Ingress protection: IP65 (charger housing). Operating temperature: -35℃ - 65℃. Cooling: Forced air cooling.
What communication interfaces does the STTL6060PH support?
CAN; Bluetooth; aux Optional 12V/2A; LCD display.
What protection features does the STTL6060PH include?
Built-in protections: Input Under/Over Voltage, Input Overcurrent, Output Over-Voltage, Output Overcurrent, Output Short Circuit, Reverse Polarity & No-Load, Automatic Shutdown, Over-Temperature.
What is the warranty on the STTL6060PH?
3-Year from date of invoice.
