SKU: MX-3000-48
Chargers Onboard

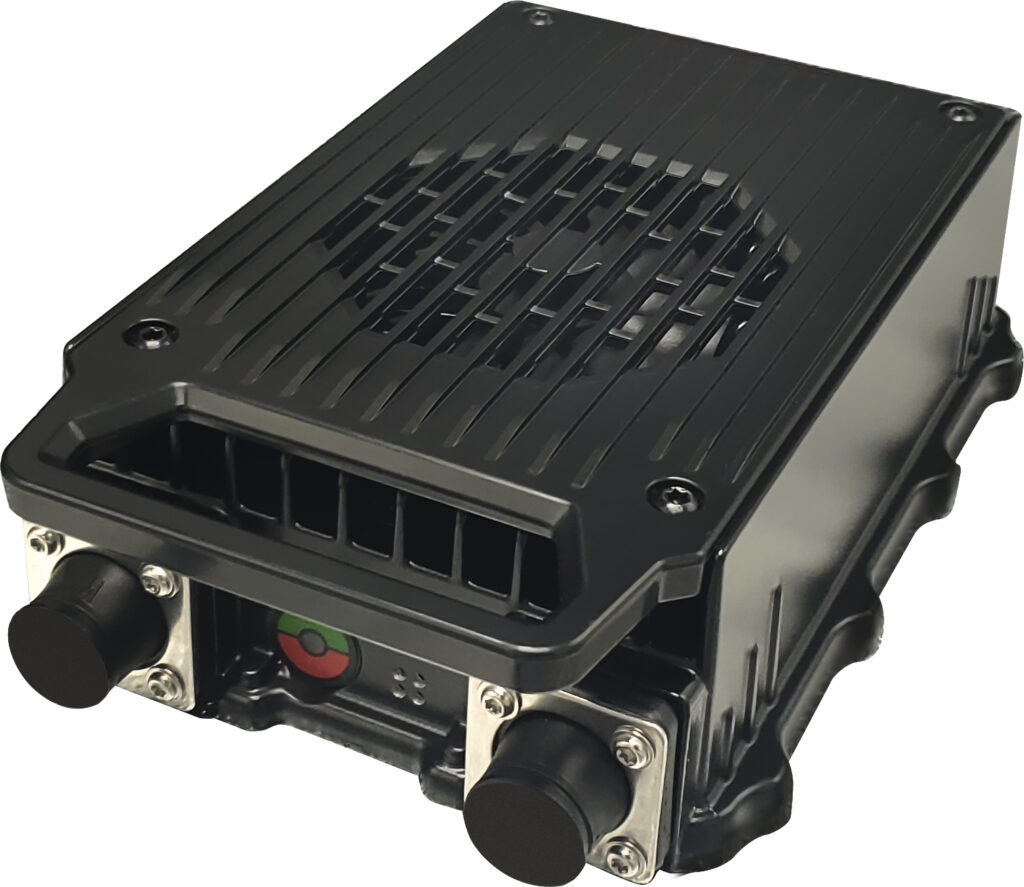

MX-3000 Onboard Charger
3 kW IP67-rated onboard charger for 48 V lithium packs with CAN J1939 control.
≥95% efficiency
IP67 rated
CAN J1939 control
2-year warranty
Technical Specifications
INPUT
85-265 Vac, 1φ, 47-63 Hz
OUTPUT
48 Vdc, 62 A, 3 kW
COMMS
CAN 2.0B / J1939 @ 250 kbps
Warranty & Service
Standard 2-year warranty from date of shipment. Extended 5-year option available. RMA process and contact info on the Support page.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Nominal Output Voltage | 48 Vdc |
| Output Voltage Range | 36-60 Vdc |
| Output Current | 62 A continuous |
| Peak Power | 3 kW |
| Efficiency | ≥ 95% @ full load |
| Power Factor | ≥ 0.99 @ full load |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to +65°C |
| Dimensions (L×W×H) | 300 × 180 × 95 mm |
| Weight | 5.2 kg |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | M16 connector, 3-pin (L, N, PE) |
| DC Output | M8 lugs, 25 mm² cable max |
| CAN | DB9, 2.0B / J1939 @ 250 kbps, isolated |
| Enable | Opto-isolated, 5-30 V, 5 mA |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Over-voltage (OVP) | Output disabled at 60 Vdc, auto-recovery at 58 Vdc |
| Over-current (OCP) | 65 A trip, foldback to 0 A, retry every 5 s |
| Over-temperature (OTP) | Derating from +60°C heatsink, shutdown at +85°C |
| Reverse polarity | Internal MOV + fuse on DC output |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air, 2× 60 mm fans, < 38 dBA @ 1 m |
| Charge profile | Configurable via CAN: CC-CV, CC-CV-Float, equalize |
| EMC compliance | EN 55032 Class B, EN 61000-6-2 |
| Galvanic isolation | Input ↔ output ↔ control: 3 kVac, 1 min |
Additional Details
The MX-3000 is the workhorse of the MX series. Field-proven in marine and off-highway applications, it handles wide-range AC input and outputs a configurable CV/CC profile under CAN supervision.
Optional: PFC pre-stage available on request.
