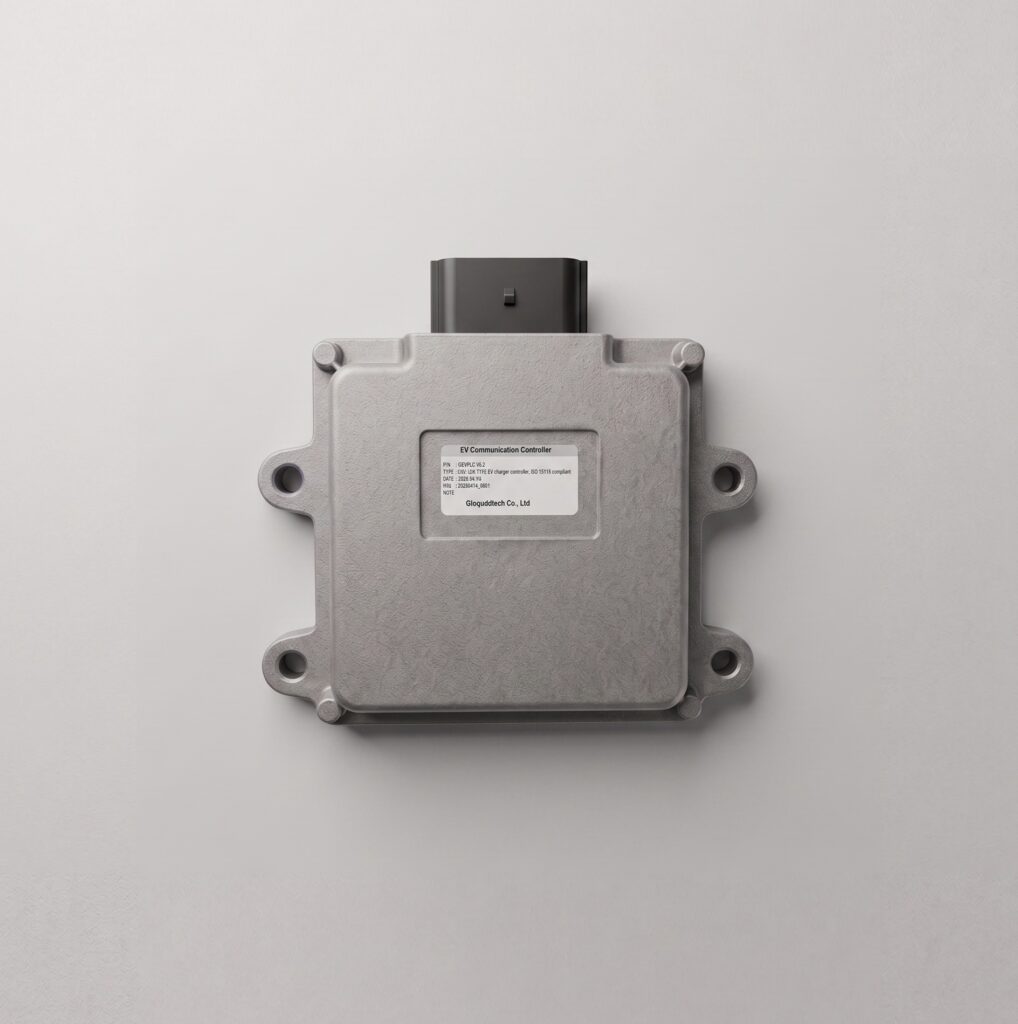

Solterra GQEVPLC-V6.2 — CCS EV Communication Controller (EVCC)
Standards-Compliant, Interoperable, Real-Time.
Vehicle-side EV communication controller for CCS DC fast charging (DIN70121, ISO15118) with bidirectional V2G, CAN and RS232.
CCS: DIN70121 & ISO15118
Bidirectional V2G
CAN + RS232
Inlet-lock actuator control
-40 ~ +85 °C
Technical Specifications
INPUT
DC 18–35 V (24 V nominal)
OUTPUT
CCS DIN70121 / ISO15118 · V2G
COMMS
CAN (ISO11898), RS232; CCS DIN70121 / ISO15118; bidirectional V2G
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Charging Mode | CCS 1.0 (DIN70121), CCS 2.0 (ISO15118) |
| V2G | Bidirectional Vehicle-to-Grid supported |
| Operating Voltage Range | DC 18–35 V (Vin 24 V) |
| CAN Interface | ISO11898 |
| Current Consumption (active) | <100 mA @24 V; <180 mA @12 V |
| Current Consumption (peak, inlet lock) | 1 A @24 V; 1.5 A @12 V |
| EVCC Wake-up | PD, CAN, I/O, CP (optional) |
| Standby Current | <2 mA (PD wake) / <1 mA (CP wake) |
| Host Interface | RS232 |
| Operating Temperature | -40 ~ +85 °C |
| Connector | Molex 20-pin (EVCC: 34830-2001) |
| Dimensions | 153 × 136 × 37 mm (incl. case) |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Power | DC 18–35 V (24 V nom) |
| CAN | ISO11898 CAN_H / CAN_L |
| Host | RS232 (RX/TX/GND) |
| Inlet lock | 4-wire lock actuator, fwd/rev |
| Connector | Molex 20-pin 34830-2001 |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Exception handling | Error handling for all exceptions |
FEATURES
| FEATURE | VALUE |
|---|---|
| Wake-up modes | PD, CAN, I/O, CP |
| Lock control | Inlet lock forward/reverse |
| Standards | CCS DIN70121 / ISO15118 |
Additional Details
GQEVPLC is a full-function EV charging communication controller (EVCC) for electric vehicles. It supports CCS DC fast charging per DIN70121 (CCS 1.0) and ISO15118 (CCS 2.0), including bidirectional Vehicle-to-Grid (V2G) communication.
