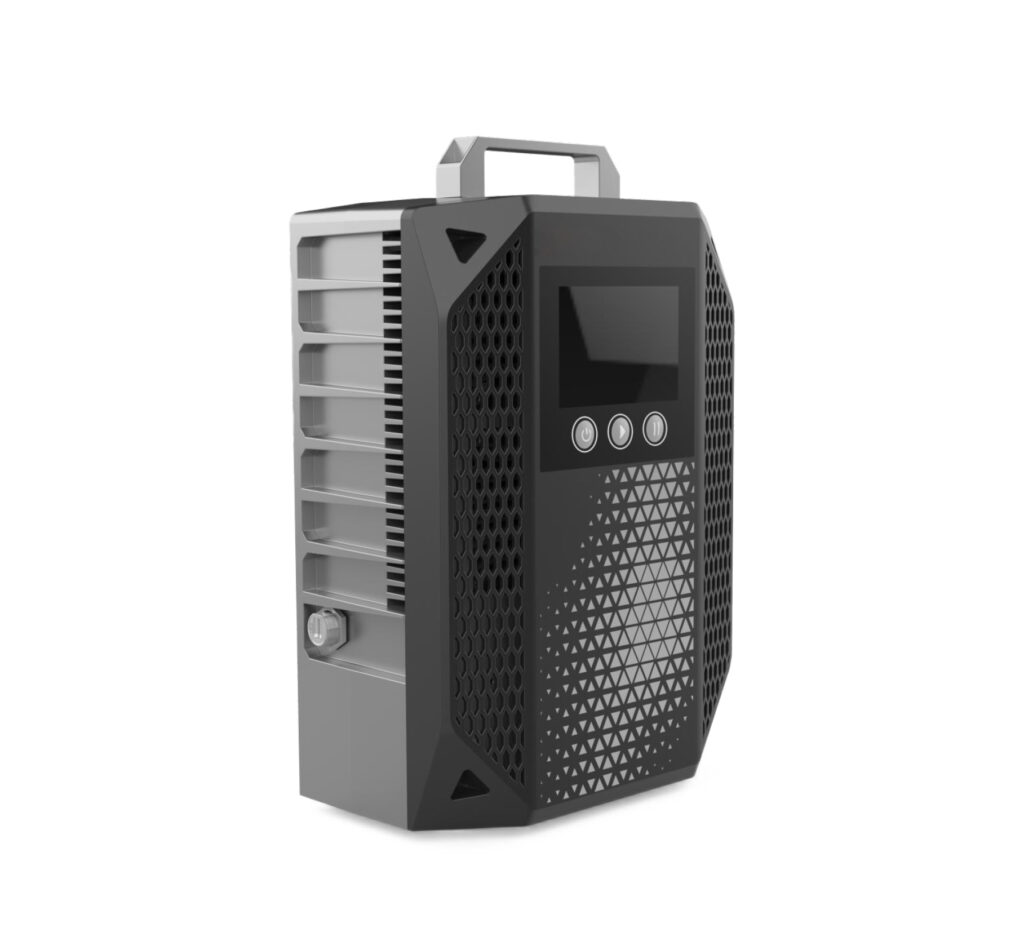

ST-H-62015-3BF — 10 kW 620 V Portable EV Charger (IP65)
Rugged, Portable, Fast-Charging.
Technical Specifications
3-Year from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 10 kW |
| Nominal Battery Voltage | 620 Vdc |
| Output Voltage Range | 240–800 Vdc |
| Max Output Current | 15 A |
| Max Charging Power | 10 kW @3P 380/440/480 Vac; 5 kW @3P 220 Vac; 3 kW @1P 220/240 Vac; 1.5 kW @1P 110/120 Vac |
| Efficiency | ≤ 95% (Max) |
| AC Input Voltage | 1P 110/120/220/240 Vac; 3P 220/380/440/480 Vac (3P+PE, B-version) |
| Max Input Current | 15 A |
| Input Frequency | 45–65 Hz |
| Power Factor | > 0.99 |
| Ingress Protection | IP65 |
| Cooling | Forced air (fan) |
| Form Factor | Portable — carry handle, LCD display + control buttons |
| Operating Temperature | -40 °C to +55 °C full power; +55 to +75 °C with linear derating |
| Storage Temperature | -40 °C to +85 °C |
| Battery Compatibility | 620 V lithium |
| Parallel Operation | Supported (multiple units for higher power) |
| Certifications | CE, UL |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 1P (L/N/PE) or 3P+PE, 220/380/440/480 Vac |
| DC Output | + / − charging cable/connector |
| CAN | BMS CAN (CANH/CANL), 125/250/500 kBd |
| Display | On-unit LCD + control buttons |
| Handle | Integrated carry handle (portable) |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input over/under-voltage | 3P: max 660 / min 150 V; 1P: max 305 / min 85 V |
| Output over/under-voltage | Quick HV-side sensor; immediate shutdown on battery overvoltage |
| Short circuit | Output short-circuit detected and protected |
| Over-temperature | Power derate above +55 °C; shutdown above +75 °C |
| Insulation / ground fault | Initial isolation > 20 MΩ; insulation/ground detection |
| Overcurrent | Current foldback or shutdown; per-phase fusing |
| Surge / lightning | High-energy overvoltage absorbed by MOV/surge elements |
| Reverse polarity | Battery-reversal detection |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air (fan); derate >55 °C, stop >75 °C |
| Isolation | Galvanic isolation: AC grid ↔ battery/vehicle DC |
| Parallel | Multiple units in parallel for higher power |
| Battery types | Lithium (lead-acid on lower-voltage variants) |
| Portability | Rugged IP65 portable enclosure with carry handle and on-unit display |
Additional Details
The ST-H-62015-3BF is a 10 kW portable EV charger for 620 V lithium battery systems, built on the ST-H portable charging platform. It accepts a wide AC input — single-phase 110–240 Vac and three-phase 220/380/440/480 Vac (3P+PE) — and delivers up to 15 A across a 240–800 Vdc output window with ≤95% efficiency and power factor >0.99.
Fully galvanically isolated between the AC grid and the vehicle DC system, the charger is sealed to IP65 in a rugged, fan-cooled portable enclosure with an integrated carry handle, on-unit LCD and control buttons. Comprehensive protections (input/output OVP/UVP, short-circuit, over-temperature derating, insulation-fault and reverse-polarity detection), CAN control, parallel operation and CE/UL compliance make it ideal for mobile, field and fleet high-voltage EV charging. Model code ST-H-62015-3BF (3 = 10 kW series, B = 3-phase 220–480 Vac input, F = fan cooling).
Frequently asked questions
What is the ST-H-62015-3BF — 10 kW 620 V Portable EV Charger (IP65)?
The ST-H-62015-3BF is a 10 kW, 620 V portable EV charger with a wide 240–800 Vdc / 15 A output and flexible 1- and 3-phase AC input (110–480 Vac). IP65-sealed, fan-cooled, CAN-controlled and galvanically isolated, it brings high-voltage DC charging anywhere in a rugged carry-handle enclosure.
What are the key specifications of the ST-H-62015-3BF?
Output — 620 Vdc · 15 A · 10 kW · ≤95% · IP65 · CAN. Input — 1P 110/120/220/240 Vac · 3P 220/380/440/480 Vac (3P+PE) · 45–65 Hz · ≤15 A · PF >0.99.
What are the ST-H-62015-3BF's efficiency, ingress protection and operating conditions?
Peak efficiency: ≤ 95% (Max). Operating temperature: -40 °C to +55 °C full power; +55 to +75 °C with linear derating. Cooling: Forced air (fan).
What communication interfaces does the ST-H-62015-3BF support?
BMS CAN (CANH/CANL), 125/250/500 kBd; on-unit LCD + control buttons (HMI).
What protection features does the ST-H-62015-3BF include?
Built-in protections: Input over/under-voltage, Output over/under-voltage, Short circuit, Over-temperature, Insulation / ground fault, Overcurrent, Surge / lightning, Reverse polarity.
What is the warranty on the ST-H-62015-3BF?
3-Year from date of invoice.
