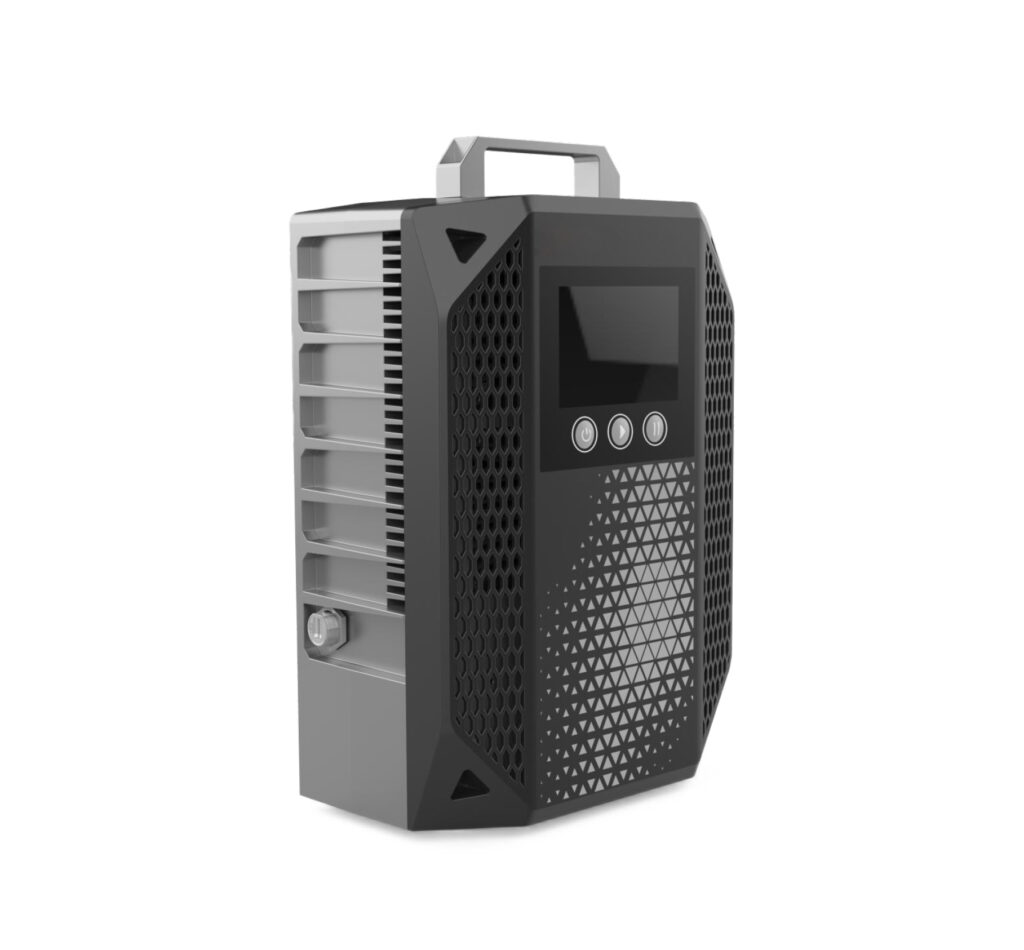

ST-H-9680-3BF — 10 kW 96 V Portable EV Charger (IP65)
Rugged, Portable, Fast-Charging.
Technical Specifications
3-Year from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 10 kW |
| Nominal Battery Voltage | 96 Vdc |
| Output Voltage Range | 40–132 Vdc |
| Max Output Current | 80 A |
| Max Charging Power | 10 kW @3P 380/440/480 Vac; 5 kW @3P 220 Vac; 3 kW @1P 220/240 Vac; 1.5 kW @1P 110/120 Vac |
| Efficiency | ≤ 95% (Max) |
| AC Input Voltage | 1P 110/120/220/240 Vac; 3P 220/380/440/480 Vac (3P+PE, B-version) |
| Max Input Current | 15 A |
| Input Frequency | 45–65 Hz |
| Power Factor | > 0.99 |
| Ingress Protection | IP65 |
| Cooling | Forced air (fan) |
| Form Factor | Portable — carry handle, LCD display + control buttons |
| Operating Temperature | -40 °C to +55 °C full power; +55 to +75 °C with linear derating |
| Storage Temperature | -40 °C to +85 °C |
| Battery Compatibility | 96 V lithium (and 96 V lead-acid) |
| Parallel Operation | Supported (multiple units for higher power) |
| Certifications | CE, UL |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 1P (L/N/PE) or 3P+PE, 220/380/440/480 Vac |
| DC Output | + / − charging cable/connector |
| CAN | BMS CAN (CANH/CANL), 125/250/500 kBd |
| Display | On-unit LCD + control buttons |
| Handle | Integrated carry handle (portable) |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input over/under-voltage | 3P: max 660 / min 150 V; 1P: max 305 / min 85 V |
| Output over/under-voltage | Quick HV-side sensor; immediate shutdown on battery overvoltage |
| Short circuit | Output short-circuit detected and protected |
| Over-temperature | Power derate above +55 °C; shutdown above +75 °C |
| Insulation / ground fault | Initial isolation > 20 MΩ; insulation/ground detection |
| Overcurrent | Current foldback or shutdown; per-phase fusing |
| Surge / lightning | High-energy overvoltage absorbed by MOV/surge elements |
| Reverse polarity | Battery-reversal detection |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air (fan); derate >55 °C, stop >75 °C |
| Isolation | Galvanic isolation: AC grid ↔ battery/vehicle DC |
| Parallel | Multiple units in parallel for higher power |
| Battery types | Lithium (lead-acid on lower-voltage variants) |
| Portability | Rugged IP65 portable enclosure with carry handle and on-unit display |
Additional Details
The ST-H-9680-3BF is a 10 kW portable charger for 96 V lithium (and lead-acid) battery systems, built on the ST-H portable charging platform. It accepts a wide AC input — single-phase 110–240 Vac and three-phase 220/380/440/480 Vac (3P+PE) — and delivers up to 80 A into a 40–132 Vdc output window with ≤95% efficiency and power factor >0.99.
The unit is fully galvanically isolated between the AC grid and the vehicle DC system, housed in a rugged IP65 portable enclosure with an integrated carry handle and on-unit LCD plus control buttons, and CAN-controlled (BMS CAN, with parallel operation to reach higher power). Comprehensive protections — input/output OVP/UVP, short-circuit, over-temperature derating, insulation/ground-fault and reverse-polarity detection — plus CE/UL compliance suit field service and fleet EV charging. Model code ST-H-9680-3BF (96 = 96 V, 80 = 80 A, 3 = 10 kW series, B = 3-phase 220–480 Vac input, F = fan cooling).
Frequently asked questions
What is the ST-H-9680-3BF — 10 kW 96 V Portable EV Charger (IP65)?
The ST-H-9680-3BF is a 10 kW, 96 V portable EV charger with wide 1- and 3-phase AC input (110–480 Vac), an IP65-rated carry enclosure and CAN control — a galvanically isolated, fan-cooled charging unit for field and fleet electric vehicles.
What are the key specifications of the ST-H-9680-3BF?
Output — 96 Vdc · 80 A · 10 kW · ≤95% · IP65 · CAN. Input — 1P 110/120/220/240 Vac · 3P 220/380/440/480 Vac (3P+PE) · 45–65 Hz · ≤15 A · PF >0.99.
What are the ST-H-9680-3BF's efficiency, ingress protection and operating conditions?
Peak efficiency: ≤ 95% (Max). Operating temperature: -40 °C to +55 °C full power; +55 to +75 °C with linear derating. Cooling: Forced air (fan).
What communication interfaces does the ST-H-9680-3BF support?
BMS CAN (CANH/CANL), 125/250/500 kBd; on-unit LCD + control buttons.
What protection features does the ST-H-9680-3BF include?
Built-in protections: Input over/under-voltage, Output over/under-voltage, Short circuit, Over-temperature, Insulation / ground fault, Overcurrent, Surge / lightning, Reverse polarity.
What is the warranty on the ST-H-9680-3BF?
3-Year from date of invoice.
