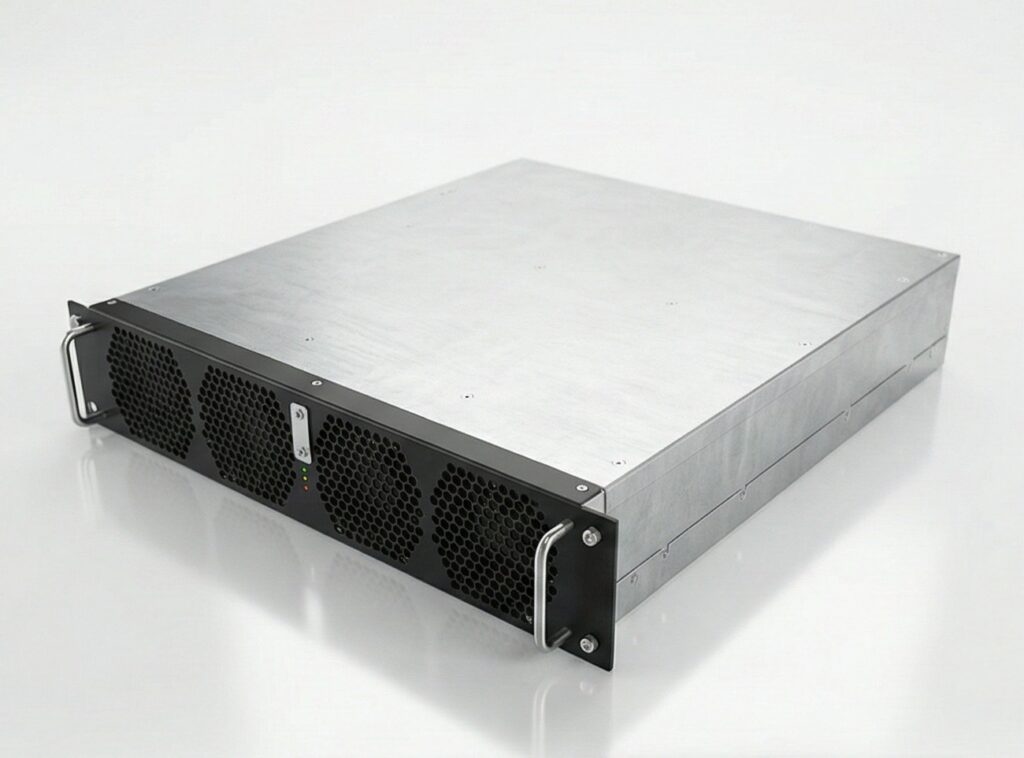

ST1000-60K — 60 kW 1000 V DC Fast-Charging Module
High-Density, Scalable, Robust.
The ST1000-60K charging module is designed for EV DC fast-charging power conversion, with an ultra-wide constant-power output of 200–1000 Vdc. It features active PFC, high efficiency and reliability, intelligent air-cooled heat di
60 kW rated
200–1000 Vdc wide output
Peak ≥96% efficiency
Active PFC, PF ≥0.99
Hot-swap, parallel up to 31
Technical Specifications
INPUT
3φ 380/480 Vac (full load 323–520 Vac, derate to 50% 260–323 Vac), ≤120 A, 45–65 Hz, PF ≥0.99, THD ≤5%
OUTPUT
200–1000 Vdc · 200 A · 60 kW · peak ≥96% / full-load ≥95%
COMMS
CAN; parallel up to 31 modules
Warranty & Service
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 60 kW |
| Output Voltage Range | 200–1000 Vdc |
| Rated Output Current | 200 A |
| Current Limit Adjustment | 1%–110% (stepless) |
| Output Ripple & Noise (p-p) | ≤1% |
| Efficiency | Peak ≥96%, full-load ≥95% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Sharing | ≤±5% |
| Rated Input Voltage | 3φ 380/480 Vac |
| Input Voltage Range | 323–520 Vac (full load); 260–323 Vac (derate to 50%) |
| Input Current | ≤120 A |
| Input Frequency | 45–65 Hz |
| Power Factor | ≥0.99 |
| THD | ≤5% |
| Operating Temperature | -40 to +50 °C full power (derate 50–70 °C) |
| Storage Temperature | -40 to +85 °C |
| Altitude | 4000 m max; no derate below 2300 m |
| Insulation Strength | Input-case / input-output: 2500 Vac, 1 min |
| Dimensions (W×H×D) | 390 × 84 × 445 mm |
| Weight | 22 kg |
| MTBF | >120,000 hours |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 3φ 380/480 Vac, ≤120 A |
| DC Output | 200–1000 Vdc, 200 A |
| CAN | Parallel up to 31 modules |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input fuse / surge | Fuse; surge / lightning circuit |
| Battery back-fill | Battery back-filling protection (hot-plug) |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Intelligent forced-air |
| Hot swapping | Supported |
| Zero standby power | Optional (A/B variant) |
Additional Details
The ST1000-60K charging module is designed for EV DC fast-charging power conversion, with an ultra-wide constant-power output of 200–1000 Vdc. It features active PFC, high efficiency and reliability, intelligent air-cooled heat dissipation, hot-plug and battery back-fill protection.
Applications: e-cars, e-buses, e-trucks, e-boats; EV fast chargers, charging cabinets, battery-swap stations and test benches.
