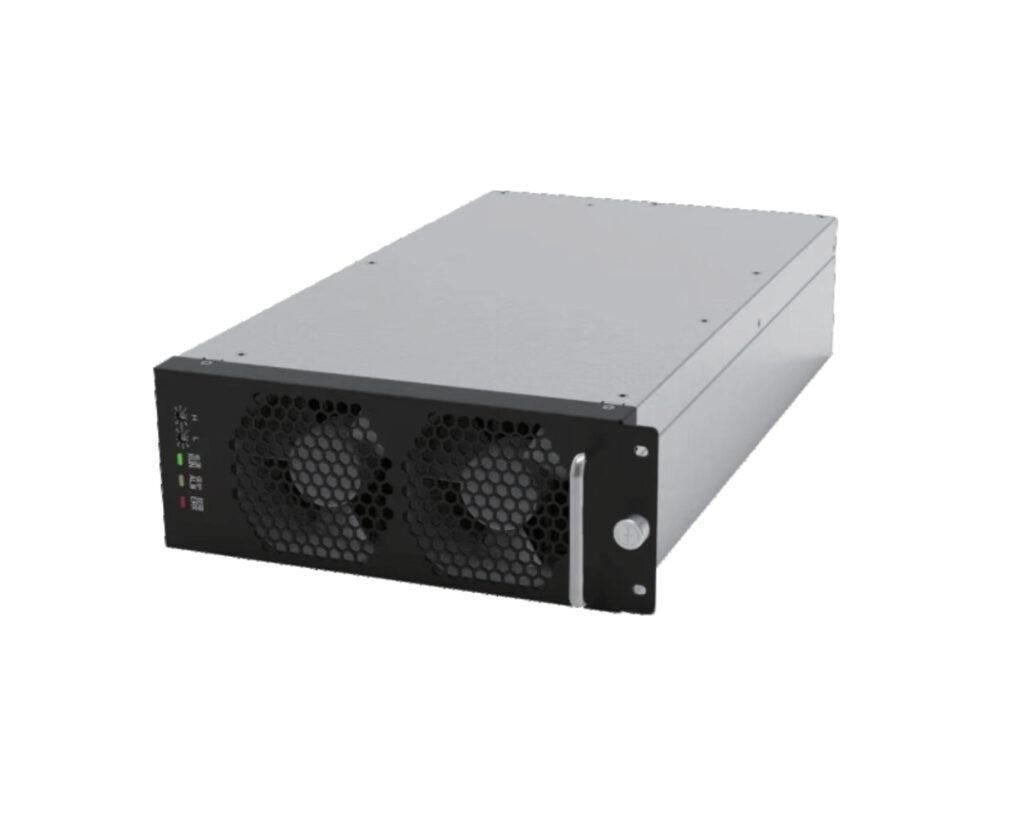

ST400-20000 — 20 kW High-Frequency Rectifier Module
High-Density, Scalable, Robust.
20 kW high-frequency switch-mode rectifier module with adjustable 200–400 Vdc / 60 A output, 3-phase 380/480 Vac input, ≥94% efficiency, CAN and parallel operation up to 60 modules.
20 kW rated
200–400 Vdc output · 60 A
≥94% efficiency
Active PFC, PF ≥0.99
CAN, parallel up to 60
Technical Specifications
INPUT
3φ 380/480 Vac (full load 323–530 Vac, derate to half load 323–260 Vac), <40 A, 45–65 Hz, PF ≥0.99, THD ≤5%
OUTPUT
200–400 Vdc · 60 A · 20 kW · ≥94%
COMMS
CAN; parallel up to 60 modules; 3 front-panel status LEDs
Warranty & Service
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 20 kW |
| Output Voltage Range | 200–400 Vdc |
| Rated Output Current | 60 A |
| Current-Limit Adjustment | 10%–110%, continuously adjustable |
| Peak-to-Peak Ripple | ≤1% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Sharing | ≤±5% |
| Efficiency | ≥94% |
| Rated Input Voltage | 3φ 380/480 Vac |
| Input Voltage Range | 323–530 Vac (full load); 323–260 Vac (derate to half load) |
| Input Current | <40 A |
| Input Frequency | 45–65 Hz |
| Power Factor | ≥0.99 |
| THD | ≤5% |
| Operating Temperature | -40 to +55 °C (derate 55–75 °C) |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 0–95% |
| Altitude | 2000 m at full load |
| Insulation Strength | Input-chassis 2500 Vac / 3535 Vdc; input-output 3000 Vac / 4242 Vdc, 1 min |
| MTBF | >120,000 hours |
| Auxiliary Output | 12 V / 5 A (60 W) |
| Dimensions (W×H×D) | 214 × 84 × 396 mm |
| Weight | 9.5 kg |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 3φ 380/480 Vac, 3-wire (phase sequence not required) |
| DC Output | 200–400 Vdc, up to 60 A |
| CAN | Status to supervisory equipment; parallel up to 60 modules |
| Auxiliary Output | 12 V / 5 A (60 W) |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input fuse / surge | Fuse; surge-protection circuit |
| Output Over-Voltage | Self-locking; recover by power-cycle after fault clears |
| AC Under/Over-Voltage & DC Under-Voltage | Output shutdown; auto-recovery on clear |
| Over-Temperature | High-temperature power limiting, then shutdown; auto-recovery |
| Over-Current | Output current limiting / protection |
| Fan Failure | Fan-failure alarm (red LED flashing) |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced-air, front intake / rear exhaust (131 CFM/module) |
| Addressing | Software (default) or hardware address selector (1–60) |
| Indicators | 3 front-panel status LEDs |
| Series | 20 kW HV rectifier series: ST240 / ST400 / ST750-20000 |
Additional Details
The ST400-20000 is a 20 kW high-frequency switch-mode rectifier module (AC/DC) with an adjustable 200–400 Vdc output at up to 60 A. It uses DSP digital control, resonant soft-switching and active PFC for high power density, high power factor, low harmonics and high efficiency, with CAN-supervised multi-module parallel operation. Part of the 20 kW high-voltage rectifier series (ST240-20000 / ST400-20000 / ST750-20000).
Applications: EV DC fast charging, charging cabinets, and industrial/telecom DC power systems.
