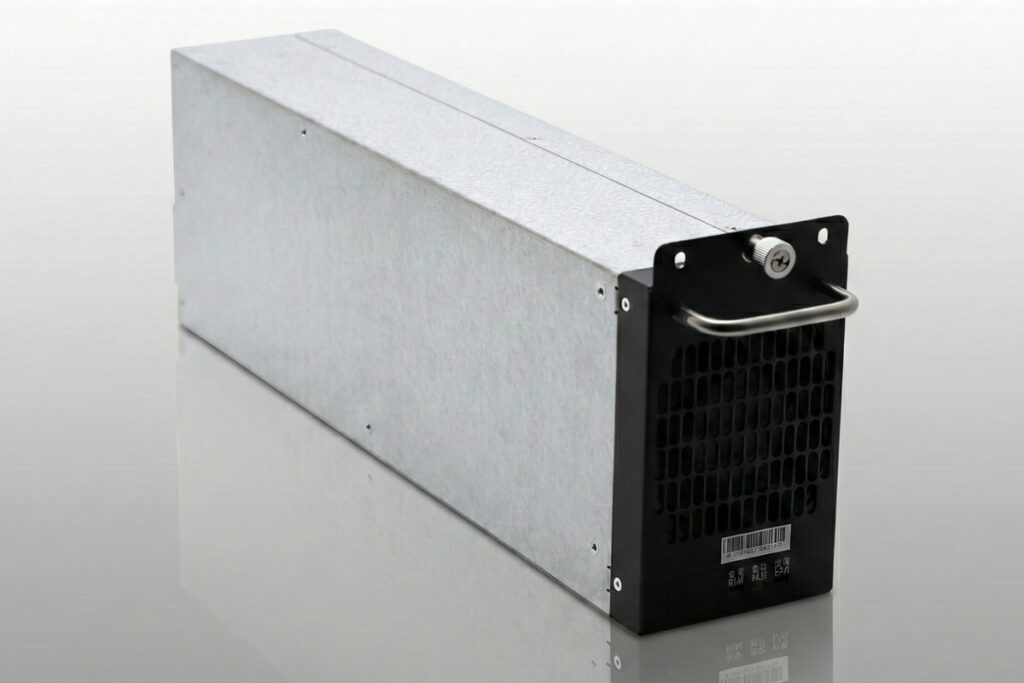

STL60-09K — 9 kW Low-Voltage EV Charging Module
High-Density, Scalable, Robust.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 9 kW |
| Output Voltage Range | 20–68 Vdc |
| Rated Output Current | 150 A |
| Adjustable Current Limiting | 15–165 A, continuously adjustable |
| Efficiency | ≥95% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Sharing Imbalance | ≤±5% |
| Rated Input Voltage | 3φ 380 Vac (323–520 Vac full load) |
| Input Current | <20 A |
| Input Frequency | 45–65 Hz |
| Power Factor | ≥0.99 |
| THD | ≤5% |
| Operating Temperature | -40 to +75 °C (derate from 50 °C) |
| Storage Temperature | -40 to +75 °C |
| Altitude | 4000 m max; no derate below 2300 m |
| Cooling | Forced-air |
| Dimensions (W×H×D) | 130 × 84 × 396 mm |
| Weight | 7 kg |
| MTBF | 120k hours |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| AC Input | 3φ 380 Vac (323–520 Vac) |
| DC Output | 20–68 Vdc, up to 150 A |
| CAN | Parallel up to 60 modules |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input fuse | Input fuse |
| Lightning protection | Lightning protection circuits |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced-air |
| Hot swapping | Supported |
| Self-diagnostics | Failure self-detection prompts |
Additional Details
The STL60-09K AC/DC charging module is designed for low-voltage charging equipment. It uses DSP digital control, resonant soft switching and active PFC for high power density, high power factor, low harmonics and high efficiency, with a 20–68 Vdc wide output and support for parallel installation.
Applications: e-scooters, e-mopeds, e-bikes, e-tricycles, e-forklifts, golf carts and other low-speed EVs.
Frequently asked questions
What is the STL60-09K — 9 kW Low-Voltage EV Charging Module?
The STL60-09K AC/DC charging module is designed for low-voltage charging equipment. It uses DSP digital control, resonant soft switching and active PFC for high power density, high power factor, low harmonics and high efficiency,
What are the key specifications of the STL60-09K?
Output — 20–68 Vdc · 150 A · 9 kW · ≥95%. Input — 3φ 380 Vac (full load 323–520 Vac, derate to 260 Vac), <20 A, 45–65 Hz, PF ≥0.99, THD ≤5%.
What are the STL60-09K's efficiency, ingress protection and operating conditions?
Peak efficiency: ≥95%. Operating temperature: -40 to +75 °C (derate from 50 °C). Cooling: Forced-air.
What communication interfaces does the STL60-09K support?
CAN; parallel up to 60 modules.
What protection features does the STL60-09K include?
Built-in protections: Input fuse, Lightning protection.
What is the warranty on the STL60-09K?
18 months from date of invoice.
