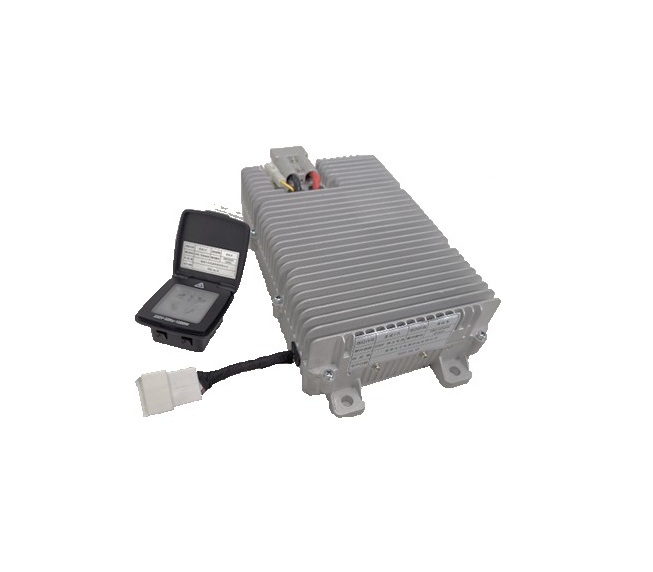

ST-VI1000-24 — 1 kW 24 V Pure Sine-Wave Vehicle Inverter
Pure-Sine, Grid-Stable, Efficient.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 1000 W |
| Nominal Battery Voltage | 24 Vdc |
| DC Input Nominal | 27 Vdc (24 V battery class) |
| DC Input Range (tested) | 22 V / 27 V / 31 V (no-load and full-load) |
| Output Voltage | 220 Vac ±5% (also stated 220 V ±5 V) |
| Output Frequency | 50 ±1 Hz |
| Output Waveform | Pure sine |
| Output THD / Waveform Distortion | < 4% (measured ~1.1%–2.55%) |
| Conversion Efficiency | ≥ 90% (measured 91.97%–94.74%) |
| Output Phase | Single-phase |
| Static (standby) Current | ≤ 0.2 mA (measured 0.00–0.01 mA, 27 V no-load) |
| Reactive / No-load Current | ≤ 600 mA (measured 493–498 mA, 27 V no-load) |
| Insulation Resistance | Not less than 10 MΩ; measured > 10 GΩ (500 Vdc, 1 min) |
| Dielectric Strength | 1500 Vac 50 Hz, 1 min; leakage < 10 mA, no breakdown/flashover (measured 0.81–2.37 mA) |
| Startup Capability | Normal start with 900 W incandescent and 1 kW induction-cooker loads at 27 V |
| Overload Output Capability | Step +10 W up to ≤ 1100 W; protects ~1070–1100 W (110% rated load → protect) |
| Continuous Output (high temp) | 50 °C: full load ≥ 2 h; 70 °C: 350 W (35%) ≥ 8 h |
| Cooling | Free convection / natural cooling |
| Cooling Detail | Heatsinks (front-stage 前级 / rear-stage 后级); no fan listed |
| Low-temperature Storage | −40 °C, settle 2 h + store 24 h; full-load function OK |
| Low-temperature Operation | −40 °C, full load continuous 24 h (output normal) |
| High-temperature Storage | +70 °C, settle 2 h + store 48 h; 350 W function OK |
| High-temperature Operation | +70 °C, 350 W continuous 8 h (output normal) |
| Test Standard | 测试规范 (internal test specification) |
| Overall Result | PASS (合格) |
| Report Number | TL-LAB-QX-2026042201 |
| Issue Date | 2026.04.22 |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| DC Input | 24 Vdc vehicle battery (27 Vdc nominal; operating ~22–31 Vdc) |
| AC Output | 220 Vac ±5%, 50 ±1 Hz, single-phase pure sine |
| Fault Indication | E01 under-voltage / E02 over-voltage / E03 overload / E04 over-temperature / E05 short-circuit |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Under-voltage (E01) | Input falls to 22 ±0.5 V → shut down (measured 21.94–22.13 V); recovery at 24 ±0.5 V → auto-restart (measured 24.00–24.30 V) |
| Over-voltage (E02) | Input rises to 31 ±1 V → shut down (measured 30.93–31.40 V); recovery at 29 ±0.5 V → auto-restart (measured 28.78–29.20 V) |
| Overload (E03) | 27 V, 1100 W (~110% rated) → shut down; remove load & restart → normal (protects ~1070–1100 W) |
| Over-temperature (E04) | Heatsink front-stage 100 ±5 °C / rear-stage 105 ±5 °C → shut down; recovery front 75 ±5 °C / rear 78.5 ±5 °C |
| Short-circuit (E05) | Response < 1 s, 3 judgements → shut down; restart → normal |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Free convection / natural cooling (dual heatsinks, no fan) |
| Output Waveform | Pure sine wave, THD < 4% |
| Efficiency | ≥ 90% (tested 91.97–94.74% at full load) |
| Battery Compatibility | 24 V vehicle battery class (27 Vdc nominal; operating ~22–31 Vdc) |
| Wide-temperature Operation | Validated full load −40 °C; 350 W at +70 °C |
| Protection Suite | E01–E05: under-voltage, over-voltage, overload, over-temperature, short-circuit |
Additional Details
The ST-VI1000-24 is a 1 kW, 24 V vehicle pure sine-wave inverter that converts a 24 V DC vehicle battery (27 Vdc nominal) into 220 Vac ±5% single-phase power at 50 Hz. Output is a clean pure sine wave with THD < 4% (measured ~1.1–2.55%) and conversion efficiency of ≥ 90% (tested 91.97–94.74% at full load), enough to start demanding loads such as a 900 W incandescent bank or a 1 kW induction cooker.
A complete protection suite guards the unit: under-voltage (E01, trips at 22 ±0.5 V), over-voltage (E02, trips at 31 ±1 V), overload (E03), over-temperature (E04, heatsink 100/105 °C) and short-circuit (E05, < 1 s response). The design uses free-convection cooling across front- and rear-stage heatsinks with no fan, and was verified for full-load operation across −40 °C to +70 °C, making it suited to mobile, vehicle and off-grid power applications.
Frequently asked questions
What is the ST-VI1000-24 — 1 kW 24 V Pure Sine-Wave Vehicle Inverter?
The ST-VI1000-24 is a 1 kW, 24 V vehicle pure sine-wave inverter that converts a 24 V DC vehicle battery to 220 Vac single-phase mains-equivalent power — pure sine output, THD < 4% and ≥ 90% efficiency, validated by full-load testing from −40 °C to +70 °C for mobile and off-grid use.
What are the key specifications of the ST-VI1000-24?
Output — 1000 W · 220 Vac pure-sine (±5%) · 50 Hz · THD < 4% · ≥ 90% efficiency (tested 91.97–94.74%). Input — DC 27 Vdc nominal (24 V class), operating window ~22–31 Vdc · UVP 22 ±0.5 V / OVP 31 ±1 V · static draw < 0.2 mA, no-load < 600 mA.
What are the ST-VI1000-24's efficiency, ingress protection and operating conditions?
Peak efficiency: ≥ 90% (tested 91.97–94.74% at full load). Cooling: Free convection / natural cooling.
What communication interfaces does the ST-VI1000-24 support?
Local fault indication only (E01 UVP, E02 OVP, E03 overload, E04 over-temp, E05 short-circuit); no RS485/CAN data port.
What protection features does the ST-VI1000-24 include?
Built-in protections: Under-voltage (E01), Over-voltage (E02), Overload (E03), Over-temperature (E04), Short-circuit (E05).
What is the warranty on the ST-VI1000-24?
18 months from date of invoice.
