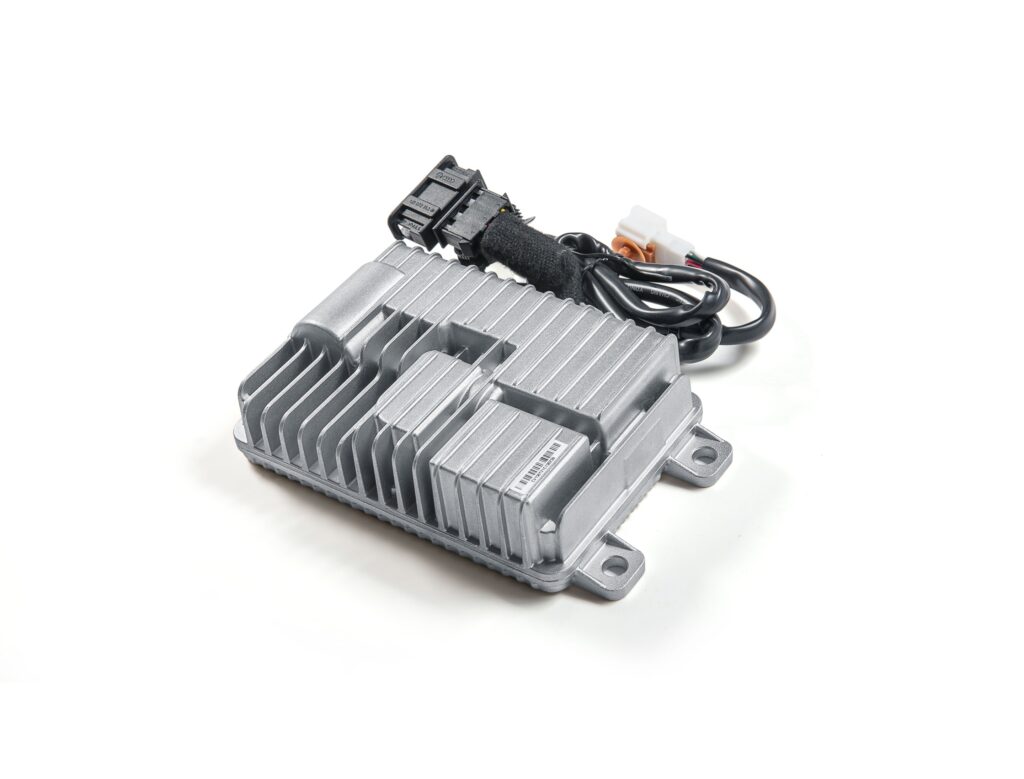

ST-VI150-12 — 150 W 12 V Pure Sine-Wave Vehicle Inverter
Pure-Sine, Grid-Stable, Efficient.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 150 W |
| Rated Input Voltage | 11–16 Vdc |
| Nominal Battery Voltage | 12 Vdc |
| Max DC Input Current | 20 A |
| No-load Current | ≤ 300 mA |
| Output Voltage | 220 Vac ±5% |
| Output Waveform | Pure sine wave |
| Output THD | ≤ 4% |
| AC Output Frequency | 50 ±1 Hz |
| Efficiency | 90% |
| Overload Protection | 250 W +10% |
| Noise | ≤ 40 dB |
| Ingress Protection | IP5K2 |
| Cooling | Free convection / natural cooling |
| Operating Temperature | -40 to +85 °C (derate above 50 °C) |
| Storage Temperature | -40 to +85 °C |
| Weight | 0.68 kg |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| DC Input | 12 Vdc (11–16 Vdc), max 20 A |
| AC Output | 220 Vac socket on separate harness |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Overload | 250 W +10% |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Free convection / natural cooling |
| Output Waveform | Pure sine wave, THD ≤ 4% |
| Standby loss | Built-in micro-switch removes standby loss |
| Output socket | Mounted on a separate harness from the inverter |
| Application | Sustains 150 W at 70 °C; suits everyday appliances ≤ 180 W |
Additional Details
The ST-VI150-12 is a 150 W, 12 V pure sine-wave vehicle inverter that converts a 12 Vdc battery supply to clean 220 Vac ±5% with THD ≤ 4% — suitable for running everyday appliances rated up to 180 W from a car, van or RV electrical system. At 90% efficiency it sustains a 150 W load even at 70 °C ambient, and its built-in micro-switch removes standby loss when no load is connected.
The unit operates from an 11–16 Vdc input with a maximum DC input current of 20 A and a no-load current of ≤ 300 mA. The 220 Vac output socket is mounted on a separate harness from the inverter body for tidy in-cabin placement, and the rugged IP5K2-rated enclosure handles a -40 to +85 °C operating range (derate above 50 °C) with quiet ≤ 40 dB running.
Frequently asked questions
What is the ST-VI150-12 — 150 W 12 V Pure Sine-Wave Vehicle Inverter?
The ST-VI150-12 is a 150 W, 12 V pure sine-wave vehicle inverter that converts 12 Vdc to clean 220 Vac for everyday appliances up to 180 W — with a built-in micro-switch that removes standby loss and a separate-harness output socket for tidy in-cabin mounting.
What are the key specifications of the ST-VI150-12?
Output — 150 W · 220 Vac pure-sine · 12 Vdc · 90% eff · THD ≤4% · micro-switch zero standby. Input — DC 11–16 Vdc (12 V), max input current 20 A, no-load current ≤300 mA.
What are the ST-VI150-12's efficiency, ingress protection and operating conditions?
Peak efficiency: 90%. Operating temperature: -40 to +85 °C (derate above 50 °C). Cooling: Free convection / natural cooling.
What communication interfaces does the ST-VI150-12 support?
No digital comms; built-in micro-switch removes standby loss; output socket on separate harness.
What protection features does the ST-VI150-12 include?
Built-in protections: Overload.
What is the warranty on the ST-VI150-12?
18 months from date of invoice.
