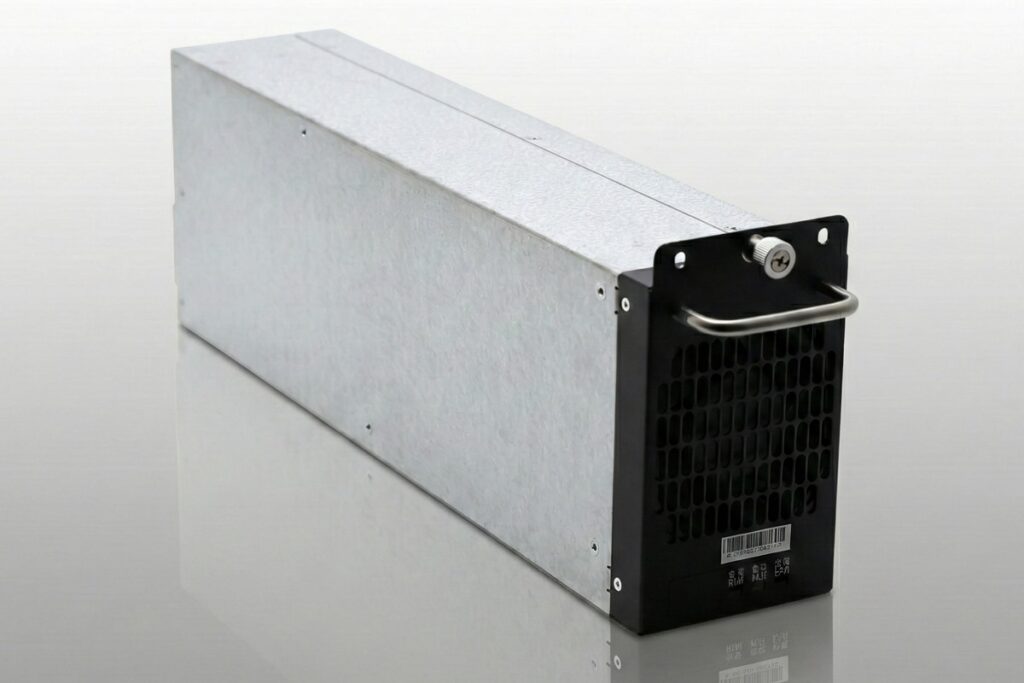

STL120-10K — 10 kW Wide-Output Charging Module
High-Density, Scalable, Robust.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Power | 10 kW |
| Output Voltage Range | 40–120 Vdc |
| Rated Output Current | 100 A |
| Adjustable Current Limiting | 9.2–101.2 A, continuously adjustable |
| Efficiency | ≥95% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Sharing Imbalance | ≤±5% |
| Input Voltage | 3φ 380 Vac (full load 323–520 Vac) |
| Input Current | <20 A |
| Input Frequency | 45–65 Hz |
| Power Factor | ≥0.99 |
| THD | ≤5% |
| Operating Temperature | -40 ~ 75 °C (derate from 50 °C; 80% load @ 60 °C) |
| Storage Temperature | -40 ~ 75 °C |
| Humidity | 0–95% RH, non-condensing |
| IP Rating | IP20 |
| Altitude | <2000 m |
| Cooling | Forced-air |
| Dimensions (W×H×D) | 130 × 84 × 396 mm |
| Weight | 7 kg |
| MTBF | 120k hours |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 3φ 380 Vac (full load 323–520 Vac, linear derate 260–323 Vac), <20 A, 45–65 Hz, PF ≥0.99, THD ≤5% |
| Output | 40–120 Vdc · 100 A · 10 kW · ≥95% |
| Control / Comms | CANbus; parallel up to 60 units |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input fuse | Input fuse |
| Lightning protection | Lightning protection circuits |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced-air |
| Hot swapping | Supported |
| Parallel operation | Up to 60 units (software / potentiometer address) |
| Self-diagnostics | Failure self-detection prompts |
Additional Details
The STL120-10K AC/DC charging module is designed for low-voltage charging equipment. It uses DSP digital control, resonant soft switching and active PFC for high power density, high power factor, low harmonics and high efficiency. It supports parallel installation for higher power and provides a 40–120 Vdc wide output to meet current and future low-voltage charging requirements.
Applications: e-scooters, e-mopeds, e-bikes, e-tricycles, e-forklifts, golf carts and other low-speed EVs.
