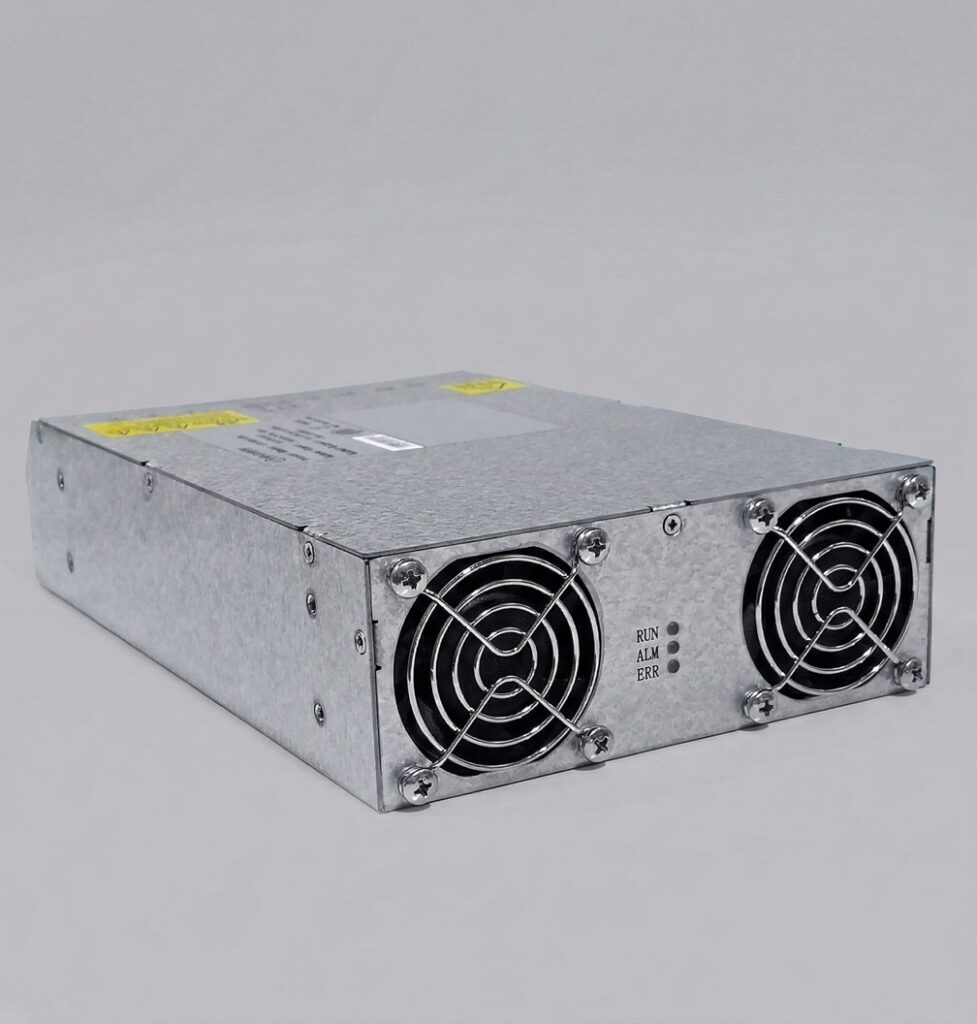

STL120-06K — 6 kW Wide-Output Charging Module
High-Density, Scalable, Robust.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 6 kW |
| Output Voltage Range | 30–120 Vdc |
| Rated Output Current | 100 A |
| Adjustable Current Limiting | 5–100 A, continuously adjustable |
| Efficiency | ≥95% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Sharing Imbalance | ≤±5% |
| Input Voltage | 1φ 185–264 Vac (L+N+PE) |
| Input Current | <42 A |
| Input Frequency | 47–53 Hz |
| Power Factor | ≥0.99 |
| THD | ≤5% |
| Operating Temperature | -40 ~ 75 °C (derate from 45 °C; 80% load @ 60 °C) |
| Storage Temperature | -40 ~ 75 °C |
| Humidity | 0–95% RH, non-condensing |
| IP Rating | IP20 |
| Altitude | 4000 m max; no derating below 2300 m |
| Cooling | Forced-air |
| Dimensions (W×D×H) | 170 × 284 × 63 mm |
| Weight | <5 kg |
| MTBF | 150k hours |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 1φ 185–264 Vac (rated 220 Vac, linear derate 150–185 Vac), <42 A, 47–53 Hz, PF ≥0.99, THD ≤5% |
| Output | 30–120 Vdc · 100 A · 6 kW · ≥95% |
| Control / Comms | Isolated CANbus; parallel up to 20 units |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Input fuse | Input fuse |
| Surge protection | 6 kV surge protection circuits |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced-air |
| Hot swapping | Supported |
| Parallel operation | Up to 20 units (software / potentiometer address) |
| Self-diagnostics | Failure self-detection prompts |
Additional Details
The STL120-06K AC/DC charging module is designed for low-voltage charging equipment. It uses DSP digital control, resonant soft switching and active PFC for high power density, high power factor, low harmonics and high efficiency. It supports parallel installation for higher power and provides a 30–120 Vdc wide output to meet current and future low-voltage charging requirements.
Applications: e-scooters, e-mopeds, e-bikes, e-tricycles, e-forklifts, golf carts and other low-speed EVs.
Frequently asked questions
What is the STL120-06K — 6 kW Wide-Output Charging Module?
6 kW single-phase wide-output (30–120 Vdc) AC/DC charging module with active PFC and isolated CAN, hot-swappable and parallel-capable.
What are the key specifications of the STL120-06K?
Output — 30–120 Vdc · 100 A · 6 kW · ≥95%. Input — 1φ 185–264 Vac (rated 220 Vac, linear derate 150–185 Vac), <42 A, 47–53 Hz, PF ≥0.99, THD ≤5%.
What are the STL120-06K's efficiency, ingress protection and operating conditions?
Peak efficiency: ≥95%. Ingress protection: IP20. Operating temperature: -40 ~ 75 °C (derate from 45 °C; 80% load @ 60 °C). Cooling: Forced-air.
What communication interfaces does the STL120-06K support?
Isolated CANbus; parallel up to 20 units.
What protection features does the STL120-06K include?
Built-in protections: Input fuse, Surge protection.
What is the warranty on the STL120-06K?
18 months from date of invoice.
