SKU: DSAF6K0-101
In collaboration with SolterraMotor&Motor Controller

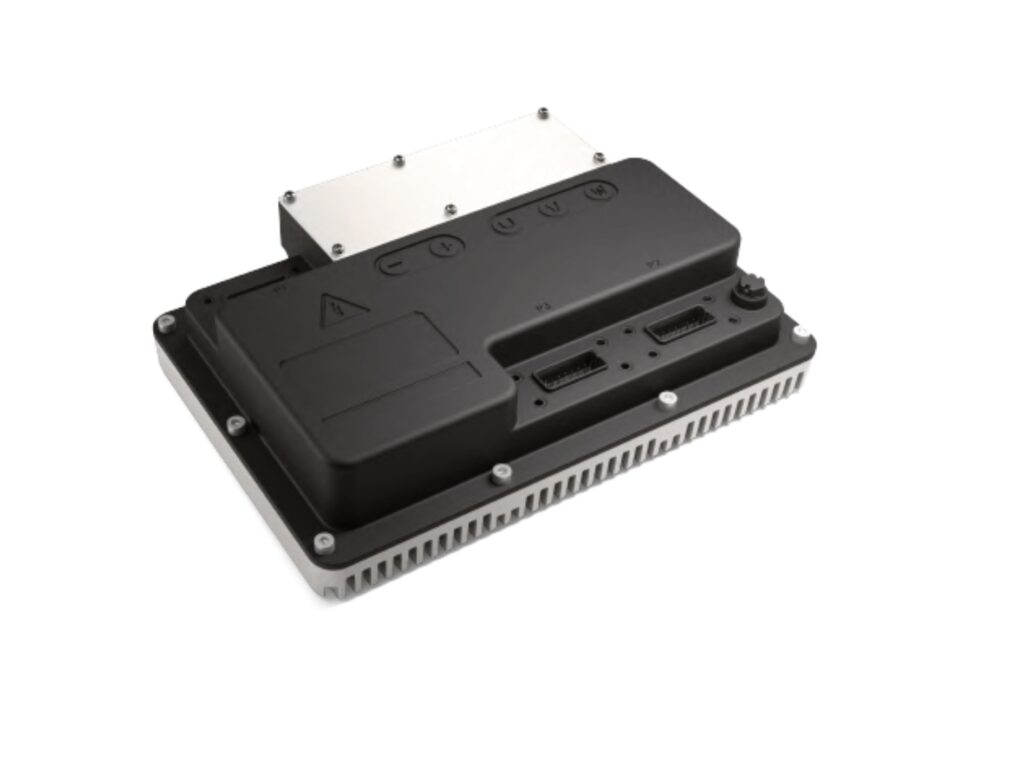

SINPRO DSAF6K0-101 — Air-Cooled Motor Controller
High-Torque, Ultra-Precise, Mission-Critical.
Air-Cooled Motor Controller — 72–120 VDC in, 0–39 VAC, 3-phase out, FOC with CAN, IP67.
Key specs
Up to 96% efficiency
IP67 sealed
Air-cooled
CAN bus / FOC control
Technical Specifications
INPUT
72–120 VDC, 120 A (max) max
OUTPUT
0–39 VAC, 3-phase · 7600 W
COMMS
CAN protocol; FOC control
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Power | 7600 |
| Peak / Max Power | 7600 |
| Output | 0–39 VAC, 3-phase |
| Efficiency | Up to 96% |
| Speed / RPM | Speed range 0–620 Hz |
| Total Regulation | ±5% |
| Input Voltage | 72–120 VDC |
| Input Current (max) | 120 A (max) |
| Cooling | Air cooled (airflow ≥ 2 m/s) |
| IP Rating | IP67 |
| Operating Temp | -10 ~ 55 °C |
| Storage Temp | -10 ~ 80 °C |
| Humidity | 0–95% RH |
| Isolation / Hi-pot | Insulation res. 20 MΩ (P-Chassis) |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 72–120 VDC, 120 A (max) max |
| Output | 0–39 VAC, 3-phase |
| Control / Comms | CAN protocol; FOC control |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| OVP | OVP |
| OCP | OCP |
| OTP | OTP |
| Short-Circuit | Short-Circuit (SCP |
| OLP | OLP |
| UVLO | UVLO |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Air cooled (airflow ≥ 2 m/s) |
| Total Regulation | ±5% |
| Isolation | Insulation res. 20 MΩ (P-Chassis) |
Additional Details
Air-Cooled Motor Controller (3-phase) for 6000W air-cooled motor.
Notes: Catalog/EDM data only; pairs with MVAF6K0-102 air-cooled motor.
Frequently asked questions
What is the SINPRO DSAF6K0-101 — Air-Cooled Motor Controller?
Air-Cooled Motor Controller — 72–120 VDC in, 0–39 VAC, 3-phase out, FOC with CAN, IP67.
What are the key specifications of the DSAF6K0-101?
Output — 0–39 VAC, 3-phase · 7600 W. Input — 72–120 VDC, 120 A (max) max.
What are the DSAF6K0-101's efficiency, ingress protection and operating conditions?
Peak efficiency: Up to 96%. Ingress protection: IP67. Cooling: Air cooled (airflow ≥ 2 m/s).
What communication interfaces does the DSAF6K0-101 support?
CAN protocol; FOC control.
What protection features does the DSAF6K0-101 include?
Built-in protections: OVP, OCP, OTP, Short-Circuit, OLP, UVLO.
