SKU: MVWF7K6-102
In collaboration with SolterraMotor&Motor Controller

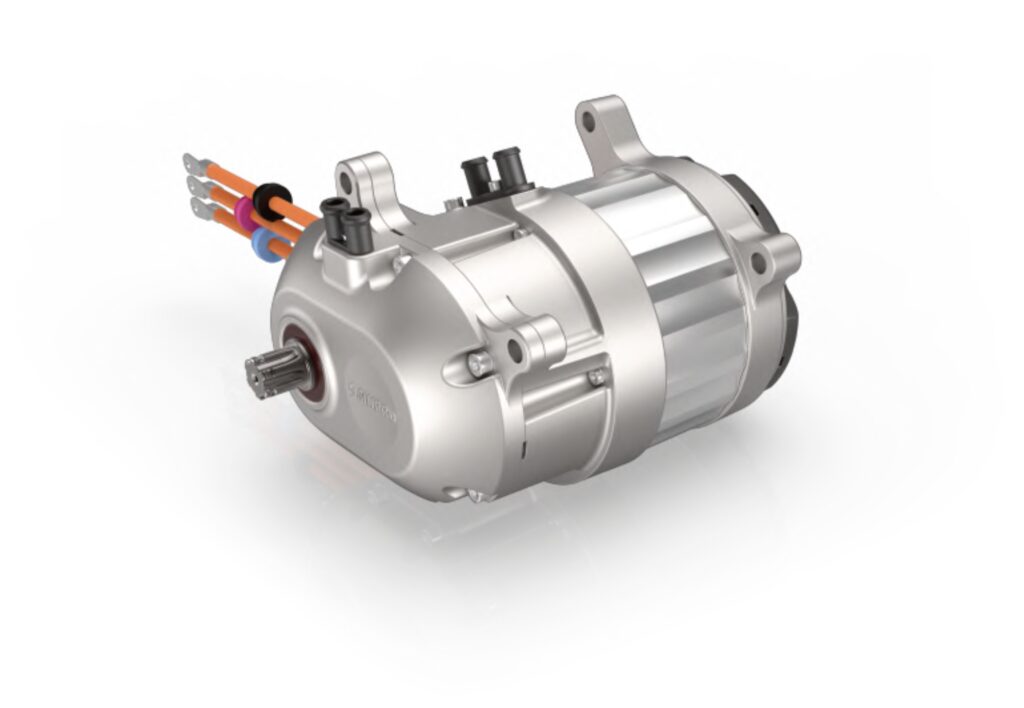

SINPRO MVWF7K6-102 — 7600W Liquid-Cooled Motor
High-Torque, Ultra-Precise, Mission-Critical.
7600W Liquid-Cooled Motor — 78 N·m (@0–833 RPM), 3100 RPM (max); 7600W @1000 RPM, Up to 96% efficiency, IP67 sealed.
Up to 96% efficiency
IP67 sealed
Liquid-cooled
Technical Specifications
INPUT
0–39 VAC (3-phase, from controller), 160 A (rated current) max
OUTPUT
7600 W peak / 7600 W rated · 78 N·m (@0–833 RPM) · 3100 RPM (max); 7600W @1000 RPM
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Power | 7600 |
| Peak / Max Power | 7600 |
| Output | Mechanical (3100 RPM max) |
| Efficiency | Up to 96% |
| Torque | 78 N·m (@0–833 RPM) |
| Speed / RPM | 3100 RPM (max); 7600W @1000 RPM |
| Total Regulation | ±5% |
| Input Voltage | 0–39 VAC (3-phase, from controller) |
| Input Current (max) | 160 A (rated current) |
| Cooling | Liquid cooled |
| IP Rating | IP67 |
| Operating Temp | -10 ~ 55 °C |
| Storage Temp | -10 ~ 80 °C |
| Humidity | 0–95% RH |
| EMC / Certifications | CNS 8886: NSS 48Hr RN7 |
| Patent | M612849 |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 0–39 VAC (3-phase, from controller), 160 A (rated current) max |
| Output | Mechanical (3100 RPM max) |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Liquid cooled |
| Total Regulation | ±5% |
Additional Details
7600W Liquid-Cooled Motor (AC brushless / PMSM).
Notes: Catalog/EDM data only; input voltage inferred from paired controller output. Also shown as SVWF7K6-102.
