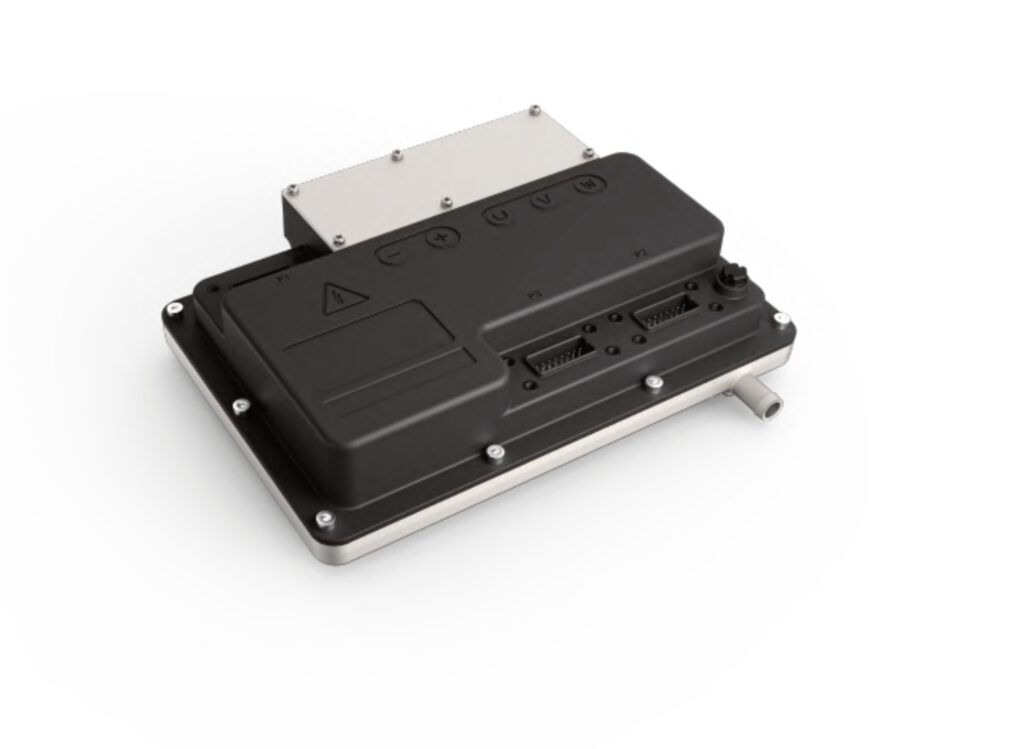

SINPRO DSWF7K6-102 — 7600W Liquid-Cooled Motor Controller for PMSM
High-Torque, Ultra-Precise, Mission-Critical.
7600W Liquid-Cooled Motor Controller for PMSM — 86–110 VDC (operate); 81–110 V (rating chart) in, 0–39 VAC, 3-phase; up to 160 A out, FOC with CAN, IP67.
Up to 96% efficiency
IP67 sealed
Liquid-cooled
CAN bus / FOC control
2-Year warranty
Technical Specifications
INPUT
86–110 VDC (operate); 81–110 V (rating chart), 120 A (full load) max
OUTPUT
0–39 VAC, 3-phase; up to 160 A · 7600 W
COMMS
CAN protocol; FOC control
Warranty & Service
2-Year from date of shipment.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Power | 7600 |
| Peak / Max Power | 7600 |
| Output | 0–39 VAC, 3-phase; up to 160 A |
| Efficiency | Up to 96% |
| Speed / RPM | Speed range 0–620 Hz |
| Total Regulation | ±5% |
| Input Voltage | 86–110 VDC (operate); 81–110 V (rating chart) |
| Input Current (max) | 120 A (full load) |
| Cooling | Liquid cooling |
| IP Rating | IP67 |
| Operating Temp | -10 ~ 55 °C (liquid temp) |
| Storage Temp | -10 ~ 80 °C |
| Humidity | 0–95% RH |
| Isolation / Hi-pot | Insulation res. 20 MΩ (P-Chassis) |
| Weight | 1.45 ± 0.1 kg |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 86–110 VDC (operate); 81–110 V (rating chart), 120 A (full load) max |
| Output | 0–39 VAC, 3-phase; up to 160 A |
| Control / Comms | CAN protocol; FOC control |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| OVP | OVP |
| OCP | OCP |
| OTP | OTP |
| Short-Circuit | Short-Circuit (SCP |
| OLP | OLP |
| UVLO | UVLO |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Liquid cooling |
| Total Regulation | ±5% |
| Isolation | Insulation res. 20 MΩ (P-Chassis) |
| Warranty | 2-Year |
Additional Details
7600W Liquid-Cooled Motor Controller for PMSM (3-phase, FOC).
Notes: Output power range 5000–7600 W. EDM lists matching liquid-cooled controller as DSWF7K6-101 (72–120 VDC input).
