SKU: MVAF6K0-102
In collaboration with SolterraMotor&Motor Controller

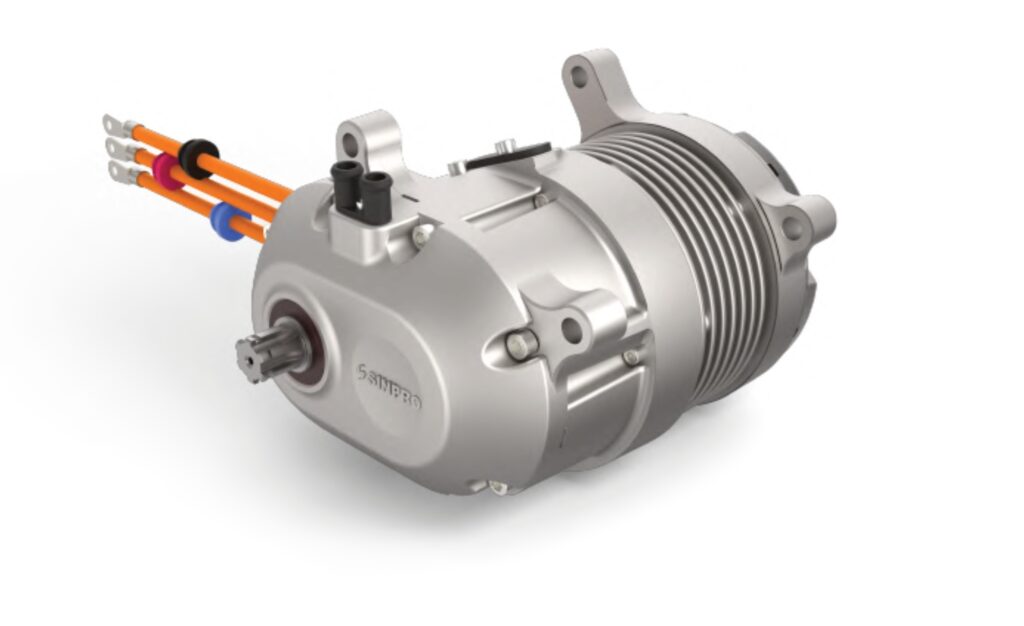

SINPRO MVAF6K0-102 — 6000W Air-Cooled Interior Permanent Magnet Synchronous Motor
High-Torque, Ultra-Precise, Mission-Critical.
6000W Air-Cooled Interior Permanent Magnet Synchronous Motor — 78 N·m (rated; @0–833 RPM), 3100 RPM (max), Up to 96% efficiency, IP67 sealed.
Up to 96% efficiency
IP67 sealed
Air-cooled
2-Year / 20,000 KM warranty
Technical Specifications
INPUT
0–39 VAC (3-phase), 160 A max
OUTPUT
6000 W peak / 3900 W rated · 78 N·m (rated; @0–833 RPM) · 3100 RPM (max)
Warranty & Service
2-Year / 20,000 KM from date of shipment.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Power | 3900 |
| Peak / Max Power | 6000 |
| Output | Mechanical (3100 RPM max) |
| Efficiency | Up to 96% |
| Torque | 78 N·m (rated; @0–833 RPM) |
| Speed / RPM | 3100 RPM (max) |
| Total Regulation | ±5% |
| Input Voltage | 0–39 VAC (3-phase) |
| Input Current (max) | 160 A |
| Cooling | Air cooled (min airflow 2 m/s) |
| IP Rating | IP67 |
| Operating Temp | -10 ~ 55 °C (case) |
| Storage Temp | -10 ~ 80 °C |
| Humidity | 0–95% RH |
| Isolation / Hi-pot | 1800 VAC (P-G, 3s); Insulation res. 100 MΩ; Stator insulation H Class |
| Dimensions (mm) | 243.00 × 185.66 × 157.40 |
| Weight | 10.5 kg |
| EMC / Certifications | CNS 8886: NSS 48Hr RN7 |
| Patent | M612849 |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| Input | 0–39 VAC (3-phase), 160 A max |
| Output | Mechanical (3100 RPM max) |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Winding & Case OTP | Winding & Case OTP |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Air cooled (min airflow 2 m/s) |
| Total Regulation | ±5% |
| Isolation | 1800 VAC (P-G, 3s); Insulation res. 100 MΩ; Stator insulation H Class |
| Warranty | 2-Year / 20,000 KM |
Additional Details
6000W Air-Cooled Interior Permanent Magnet Synchronous Motor (IPMSM, 3-phase AC brushless).
Notes: Reduction ratio 3:1. EDM catalog lists 63 N·m torque and -10~+85°C op temp (vs datasheet 78 N·m / 55°C).
