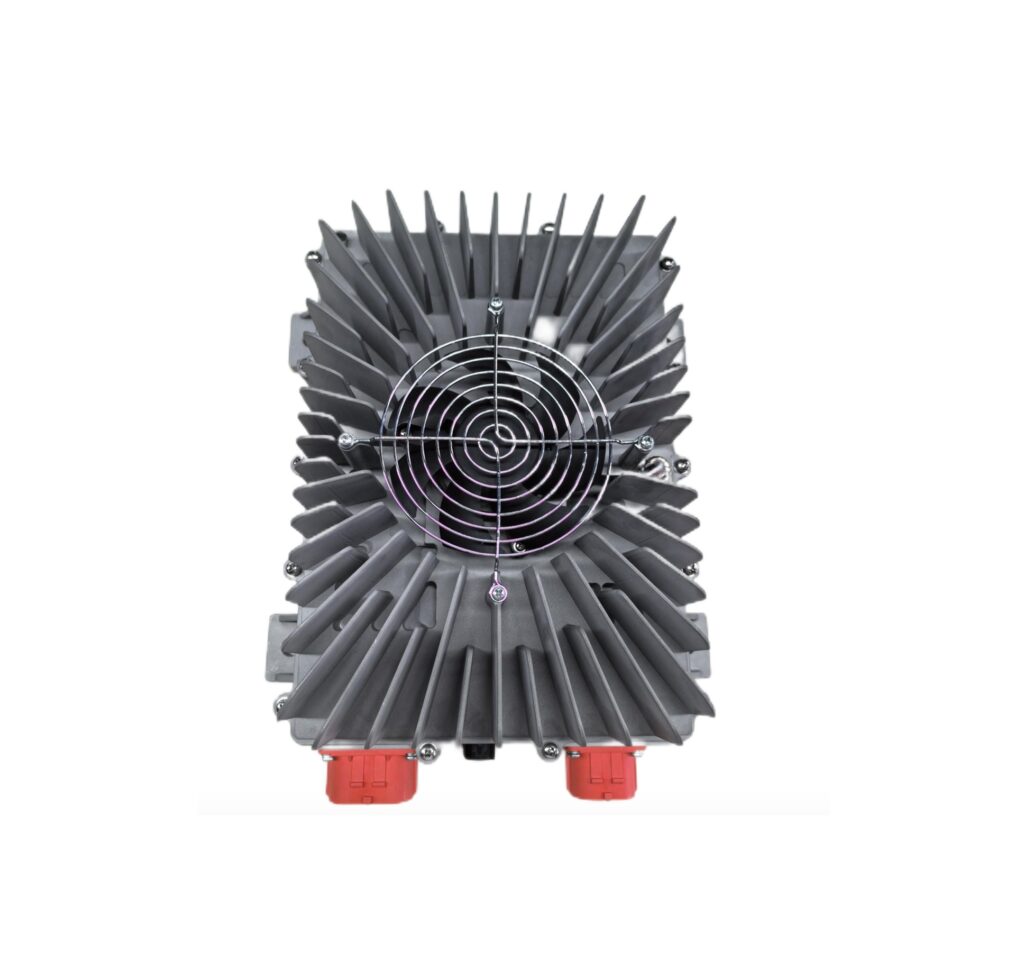

ST-VI3000-800 — 3 kW 800 V HV Pure Sine-Wave Inverter
Pure-Sine, Grid-Stable, Efficient.
Technical Specifications
18 months from date of invoice.
Detailed Specifications
PARAMETERS
| PARAMETER | VALUE |
|---|---|
| Rated Output Power | 3000 W |
| Rated Input Voltage | 600–876 Vdc (high-voltage traction bus) |
| Nominal Battery Voltage | 800 Vdc |
| Output Voltage | 220 Vac ±5% |
| Output Waveform | Pure sine wave |
| Output THD | ≤ 5% |
| AC Output Frequency | 50 ±1 Hz |
| Efficiency | 90% |
| Overload Protection | 100–120% > 2 min; 120–145% power-limited to ~105 ±5%; > 145% 0.3 s |
| Cooling | Forced air cooling |
| Ingress Protection | IP6K5 |
| Operating Temperature | -40 to +85 °C (derate above 55 °C) |
| Storage Temperature | -40 to +85 °C |
| Operating Humidity | 10–95% RH, non-condensing |
| Altitude | 0–3000 m |
| Weight | 9.5 kg |
INTERFACE
| INTERFACE | VALUE |
|---|---|
| HV DC Input (Main) | 800 V high-voltage traction bus (600–876 Vdc) |
| Auxiliary Supply Input | Low-voltage auxiliary supply |
| AC Output | 220 Vac ±5%, 50 ±1 Hz pure sine wave |
PROTECTIONS
| PROTECTION | DESCRIPTION |
|---|---|
| Overload | 100–120% > 2 min; 120–145% power-limited to ~105 ±5%; > 145% trips in 0.3 s |
FEATURES
| FEATURE | VALUE |
|---|---|
| Cooling | Forced air cooling |
| Ingress Protection | IP6K5 sealed |
| Input architecture | Dual input: 800 V HV main + low-voltage auxiliary supply |
| Application status | Under A-sample testing on a Suzhou Zaihe 49 T tractor |
Additional Details
The ST-VI3000-800 is a 3 kW, 800 V high-voltage vehicle inverter that converts an 800 V traction battery bus (600–876 Vdc) into clean 220 Vac ±5% pure sine-wave power at 50 ±1 Hz, with total harmonic distortion held to ≤5% and 90% conversion efficiency.
Built for harsh on-vehicle service, the unit is IP6K5-sealed and rated -40 to +85 °C (derating above 55 °C), with 10–95% RH non-condensing humidity tolerance and operation up to 3000 m altitude. It uses a dual-input architecture — an HV main feed plus a low-voltage auxiliary supply — and carries staged overload protection. The ST-VI3000-800 is currently under A-sample testing on a Suzhou Zaihe 49 T tractor.
Frequently asked questions
What is the ST-VI3000-800 — 3 kW 800 V HV Pure Sine-Wave Inverter?
The ST-VI3000-800 is a 3 kW, 800 V high-voltage vehicle inverter that converts an 800 V traction battery bus to clean 220 Vac pure sine-wave power — IP6K5-sealed, -40 to +85 °C rated, with dual HV-main and low-voltage auxiliary inputs for off-grid and on-vehicle AC loads.
What are the key specifications of the ST-VI3000-800?
Output — 3000 W · 220 Vac pure-sine · 800 Vdc input · 90% efficiency · IP6K5. Input — HV DC 600–876 Vdc (800 V nominal traction bus) · low-voltage auxiliary supply input · altitude 0–3000 m.
What are the ST-VI3000-800's efficiency, ingress protection and operating conditions?
Peak efficiency: 90%. Operating temperature: -40 to +85 °C (derate above 55 °C). Cooling: Forced air cooling.
What communication interfaces does the ST-VI3000-800 support?
Dual input: HV main + low-voltage auxiliary supply.
What protection features does the ST-VI3000-800 include?
Built-in protections: Overload.
What is the warranty on the ST-VI3000-800?
18 months from date of invoice.
